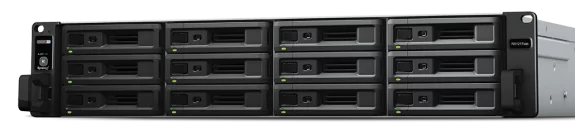

RX1217sas - Synology Expansion Unit RX1217sas

THÔNG SỐ KỸ THUẬT RX1217sas - Synology Expansion Unit RX1217sas Hardware Specifications APPLIED MODELS Supports creating volumes across different units FS series:FS6400, FS3600, FS3400, FS3017, FS2017 SA series:SA3600, SA3400 17 series:RS18017xs+ Notes To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit. Connecting to a Synology FlashStation FS3017 requires the optional FS3017 Expansion Card (FXC17) to be installed on the host device. FS3017 Expansion Card is sold separately. STORAGE Drive Bays 12 Compatible Drive Type* (See all supported drives) 3.5" SAS HDD 2.5" SAS HDD 2.5" SAS SSD 3.5" SATA HDD 2.5" SATA SSD Maximum Internal Raw Capacity 192 TB (16 TB drive x 12) (Capacity may vary by RAID types) Hot Swappable Drive RAID Management through Synology DSM Notes It is strongly recommended that you only install drives listed on your device's compatibility list. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components. EXTERNAL PORTS SAS IN-port 1 SAS OUT-port 1 APPEARANCE Size (Height x Width x Depth) 88 mm x 430.5 mm x 692 mm Size (Height x Width x Depth) (with server ears) 88 mm x 482 mm x 724 mm Weight 18 kg Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS-02) Notes The rail kit is sold separately POWER Power Recovery Synchronized with the Synology RackStation Power Supply Unit / Adapter 500 W AC Input Power Voltage 100 V to 240 V AC Power Frequency 50/60 Hz, Single Phase Power Consumption* 132.7 W (Access) 89.3 W (HDD Hibernation) British Thermal Unit 452.79 BTU/hr (Access) 304.7 BTU/hr (HDD Hibernation) Redundant Power Supply (for RP model) Notes Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). TEMPERATURE Operating Temperature 5°C to 35°C (40°F to 95°F) Storage Temperature -20°C to 60°C (-5°F to 140°F) Relative Humidity 5% to 95% RH OTHERS System Fan 60 mm x 60 mm x 4 pcs Easy Replacement System Fan Noise Level* 60.9 dB(A) CERTIFICATION UL FCC CE BSMI EAC RCM KC WARRANTY 5 Years Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) Environment & Packaging ENVIRONMENT RoHS Compliant PACKAGING CONTENT Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Expansion Cable: MiniSAS-HD X 1 Quick Installation Guide X 1 OPTIONAL ACCESSORIES 3.5" SATA HDD: HAT5300 3.5" SAS HDD: HAS5300 2.5" SATA SSD: SAT5210 Rail Kit Sliding: RKS-02
