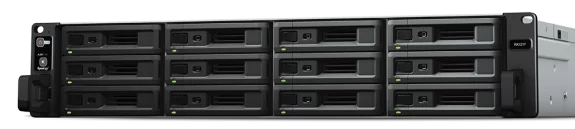

RX1217RP Synology Expansion Unit

THÔNG SỐ KỸ THUẬT RX1217RP Synology Expansion Unit Hardware Specifications APPLIED MODELS Supports creating volumes across different units 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+ 19 series:RS1619xs+ 18 series:RS3618xs, RS2818RP+, RS2418RP+, RS2418+ 17 series:RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs 16 series:RS2416RP+, RS2416+ 14 series:RS3614xs+, RS3614RPxs, RS3614xs, RS2414RP+, RS2414+ 13 series:RS3413xs+ 12 series:RS3412RPxs, RS3412xs, RS2212RP+, RS2212+ 11 series:RS3411RPxs, RS3411xs, RS2211RP+, RS2211+ Notes To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit. DSM version requirement: 6.0.1-7393 or later version STORAGE Drive Bays 12 Compatible Drive Type* (See all supported drives) 3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD Maximum Internal Raw Capacity 192 TB (16 TB drive x 12) (Capacity may vary by RAID types) Hot Swappable Drive RAID Management through Synology DSM Notes It is strongly recommended that you only install drives listed on your device's compatibility list. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components. EXTERNAL PORTS Expansion Port 1 APPEARANCE Size (Height x Width x Depth) 88 mm x 430.5 mm x 664 mm 88 mm x 430.5 mm x 692 mm (for RP model) Size (Height x Width x Depth) (with server ears) 88 mm x 482 mm x 696 mm 88 mm x 482 mm x 724 mm (for RP model) Weight 12.7 kg 13.4 kg (for RP model) Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS-02) Notes The rail kit is sold separately POWER Power Recovery Synchronized with the Synology RackStation Power Supply Unit / Adapter 500 W AC Input Power Voltage 100 V to 240 V AC Power Frequency 50/60 Hz, Single Phase Power Consumption* 68.60 W (Access) 27.45 W (HDD Hibernation) 71.3 W (Access) (for RP model) 31.2 W (HDD Hibernation) (for RP model) British Thermal Unit 234.23 BTU/hr (Access) 93.73 BTU/hr (HDD Hibernation) 243.52 BTU/hr (Access) (for RP model) 106.53 BTU/hr (HDD Hibernation) (for RP model) Redundant Power Supply (for RP model) Notes Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). TEMPERATURE Operating Temperature 5°C to 35°C (40°F to 95°F) Storage Temperature -20°C to 60°C (-5°F to 140°F) Relative Humidity 5% to 95% RH OTHERS System Fan 80 mm x 80 mm x 3 pcs Easy Replacement System Fan Noise Level* 54.6 dB(A) 54.2 dB(A) (for RP model) Notes Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% CERTIFICATION FCC CE BSMI EAC RCM KC
