System Specifications

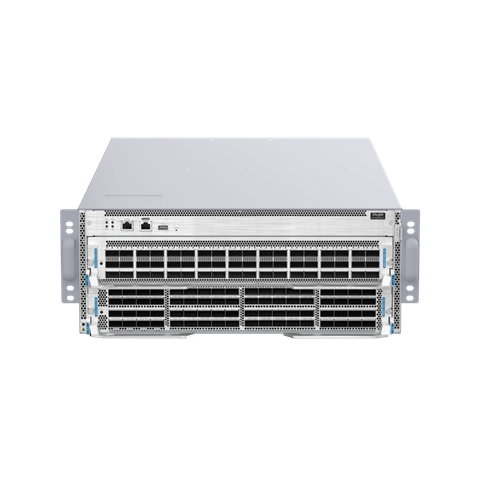

RG-S6930-2C

Switching Capacity

28.8 Tbps

Packet Forwarding Rate

5400 Mpps

Port Specifications

RG-S6930-2C

Ports

100GE/200GE ports

Expansion Module Slots

Two, each slot supporting the line card with up to 72 x 100GE ports or 36 x 200GE ports

Expansion Modules

Four power module slots, supporting 2+2 redundancy

Eight fan module slots, supporting 7+1 redundancy

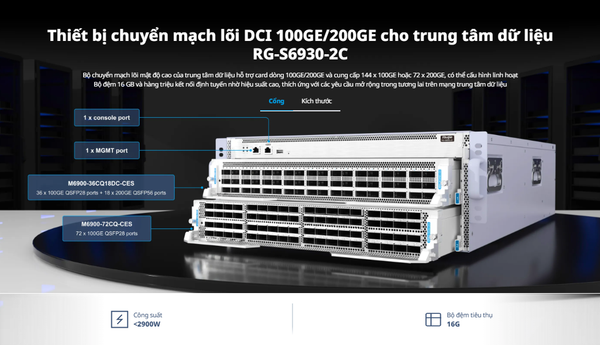

Management Ports

One management port, one Console port, and one USB port

Dimensions and Weight

RG-S6930-2C

Dimensions (W × D × H)

442 mm x 760 mm x 175 mm (17.40 in. x 29.92 in. x 6.89 in., 4 RU)

Weight

33.55 kg (73.97 lbs., including eight fan modules and four power supply modules)

Power Supply and Consumption

RG-S6930-2C

Input Voltage

AC

● Rated input voltage range: 100 V AC to 127 V AC (50 Hz to 60 Hz), rated input current: 12 A

● Rated input voltage range: 200 V AC to 240 V AC (50 Hz to 60 Hz), rated input current: 9.5 A

● Max input voltage range: 90 V AC to 264 V AC (47 Hz to 63 Hz)

HVDC

● Rated voltage: 240 V DC

● Rated input current: 8.5 A

Maximum Power Consumption

● Max: 2934 W

● Typical: 1338 W

● Static: 600 W

Environment and Reliability

RG-S6930-2C

Operating Temperature

0ºC to 40ºC (32ºF to 104ºF)

Storage Temperature

–40ºC to +70ºC (–40ºF to +158ºF)

Operating Humidity

10% RH to 90% RH (non-condensing)

Storage humidity

5% RH to 95% RH (non-condensing)

Working altitude

Operating altitude: up to 5000 m (16,404.20 ft.)

Storage altitude: up to 5000 m (16,404.20 ft.)

Software Specification

RG-S6930-2C

802.1Q VLAN

4094

L2 Protocols

IEEE802.3ad (Link Aggregation Control Protocol), IEEE802.1p, IEEE802.1Q, IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, MLD Snooping, Jumbo Frame (9 KB), IEEE802.1ad (basic QinQ and *selective QinQ), and GVRP

L3 Protocols

(IPv4)

BGP4, OSPFv2, IS-IS, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing, Routing Policy, ECMP, WCMP, VRRP, IGMP v1/v2/v3, PIM-SSM/SM/DM, MSDP, and Any-RP

Basic IPv6 Protocols

Neighbor Discovery, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, and IPv6 QoS

IPv6 Features

Static routing, ECMP, PBR, BGP4+, OSPFv3, IS-ISv6, RIPng, MLDv1/v2, PIM-SMv6, manual tunnel, *automatic tunnel, IPv4 over IPv6 tunnel, and * ISATAP tunnel

Visualization

gRPC

sFlow and IPFIX sampling

Data center features

Reporting buffer usage, queue traffic statistics, and packet drop statistics through gRPC

Hang prevention

MMU

Querying queue peak time

Displaying packet drop caused by insufficient buffer

Displaying the number of buffer alarms

Real-time buffer monitoring

Reading unicast packet drop caused by buffer congestion through MIB

Multicast

IGMP Proxy、IGMP v1, v2, v3、IGMP host behavior、Querier election、Membership query and response、Static multicast route、IGMP fast leave、IGMP filter、IGMP v1 and v2 snooping、IVGL mode、Querier、Source IP address check、MLD proxy、MLDv1, v2、MLD snooping、MSDP、PIM-DM、PIM-SM v6(PIM-SM v6/PIM-SSM v6)、PIM-SMv4(PIM-SM/PIM-SSM)

ACL

ACL80、Dual-stack support for ACL、ACL-based redirection、IPv6 ACL、Standard IP ACL、Extended IP ACL、Extended MAC ACL、Ingress/Egress ACLs、Time-based ACL、Global ACL、Resource sharing in the case of applying an ACL on different physical ports or SVIs、ACL counter、ACL counter only、ACL logging、ACL re-marking、IPv4/IPv6 user-defined function(UDF) ACL、Displaying ACL resource usage、Expert-level ACL

QoS

802.1p, DSCP, and ToS priority mapping

ACL-based traffic classification

Priority marking and remarking

Queue scheduling mechanisms, including SP, WFQ, and SP+WFQ

HA Design

GR for RIP/OSPF/BGP, BFD, REUP dual-link fast switching, RLDP unidirectional link detection, 2+2 power redundancy, fan redundancy, and hot swapping for all line cards and power supply modules

Security Features

MACSec, Network foundation protection policy (NFPP), CPU Protection Policy (CPP), DDoS attack defense, unauthorized data packet detection, source IP spoofing prevention, IP scanning prevention, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 authentication for OSPF, RIPv2, and BGPv4 packets, uRPF, broadcast packet suppression, Telnet login and password mechanisms for restricted IP addresses

Management Modes

SNMP v1/v2c/v3, Telnet, Console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP, syslog, and SPAN/RSPAN/ERSPAN

Other Protocols

DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP Relay, ARP Proxy, and Syslog

*MPLS

MPLS L3VPN, SR, and SRv6
