System Specifications

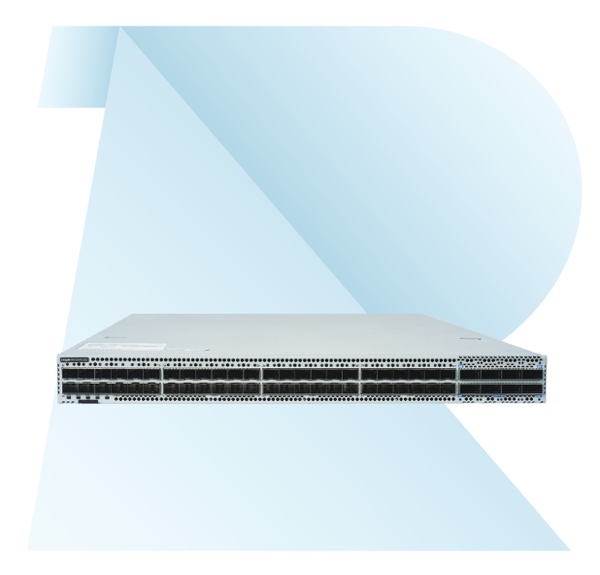

RG-S6580-48CQ8QC

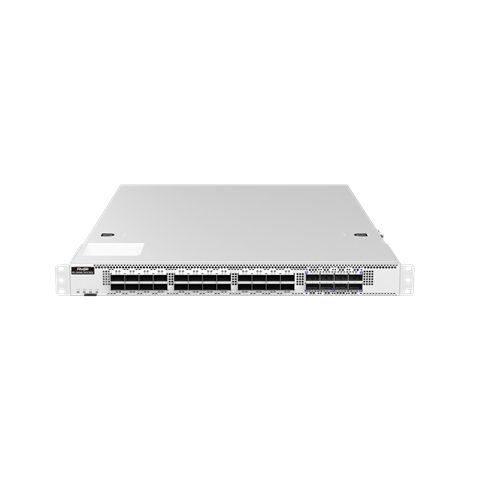

RG-S6580-24DC8QC

Ports

48 × 100GE ports (DSFP) + 8 × 400GE ports (QSFP-DD)

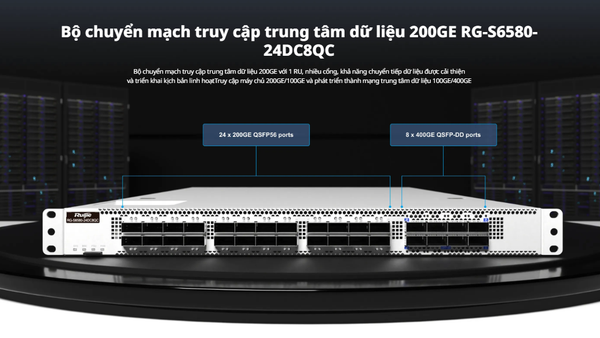

24 × 200GE ports (QSFP56) + 8 × 400GE ports (QSFP-DD)

Expansion Modules

Not supported

Expansion Module Slots

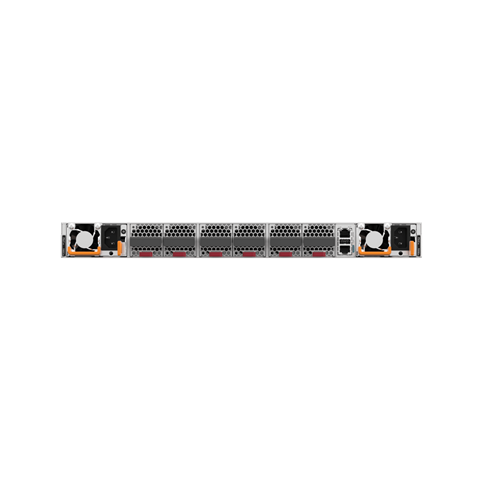

Two power supply module slots (1+1 redundancy)

Six fan module slots (5+1 redundancy; at least 5 fan modules are required)

Management Port

One management port, one console port, and one USB port, compliant with the USB2.0 standard

Switching Capacity

16.0 Tbps

Packet Forwarding Rate

5350 Mpps

802.1Q VLAN

4094

Dimensions

RG-S6580-48CQ8QC

RG-S6580-24DC8QC

Dimensions (W × D × H)

442 mm x 700 mm x 44 mm (17.40 in. x 27.56 in. x 1.73 in., 1 RU)

442 mm x 670.8 mm x 43.6 mm (17.40 in. x 26.41 in. x 1.72 in., 1 RU)

Weight

Chassis with six fan modules and two power supply modules: 11.5 kg (25.35 lbs.)

Chassis with six fan modules and two power supply modules: 11 kg (24.25 lbs.)

Power Supply and Consumption

RG-S6580-48CQ8QC

RG-S6580-24DC8QC

Power Input

AC input

RG-PA1200I-F module

● Rated voltage: 110 V AC/220 V AC

● Rated voltage range: 100 V AC to 127 V AC (50 Hz to 60 Hz), rated current: 13.8 A

● Rated voltage range: 200 V AC to 240 V AC (50 Hz to 60 Hz), rated current: 8.5 A

● Max voltage range: 90 V AC to 264 V AC (47 Hz to 63 Hz)

HVDC input

RG-PA1200I-F module

● Rated voltage: 240 V DC

● Max voltage range: 180 V DC to 300 V DC

● Max input current: 6.5 A

Maximum Power Consumption

● Max: 742 W

● Typical: 633 W

● Static: 178 W

● Max: 850 W

● Typical: 700 W

● Static: 300 W

Environment and Reliability

RG-S6580-48CQ8QC

RG-S6580-24DC8QC

Temperature Alarm

Temperature alarms and overheat protection

Operating Temperature

0ºC to 40ºC (32ºF to 104ºF)

Storage Temperature

–40°C to +70°C (–40ºF to +158ºF)

Operating Humidity

10% RH to 90% RH (non-condensing)

Storage humidity

5% to 95% RH (non-condensing)

Working altitude

Operating altitude: up to 5000 m (16,404.20 ft.)

Storage altitude: up to 5000 m (16,404.20 ft.)

Software Specifications

RG-S6580-48CQ8QC

RG-S6580-24DC8QC

L2 Protocols

IEEE 802.3x, IEEE 802.3ad (Link Aggregation Control Protocol), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), Jumbo Frame (9 KB)

L3 Protocols (IPv4)

BGP4, OSPFv2, RIPv1, RIPv2, LPM routing, Policy-based Routing (PBR), route-policy, Equal-Cost Multi-Path Routing (ECMP), WCMP, VRRP

IPv6 Basic Protocols

Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS

IPv6 Features

Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+

ACL

ACL 80、ACL-based Redirection、IPv6 ACL、Extended/Standard IP/MAC-based ACL、Time-based ACL、Global ACL、When an ACL is applied to different physical interfaces or SVIs, resources can be shared.、ACL Counter、ACL Counter Only、ACL Logging、Diplaying ACL Resource Usage、Expert-level ACL、IPv4 UDF ACL、Global ACL Counter Only、Matching Against the Inner 5-Tuple of the VXLAN、IPv6 UDF ACL、Matching Against the Inner 5-Tuple of the Passing VXLAN、Ingress/Egress ACLs

ACL80、ACL-based redirection、IPv6 ACL、Extended/Standard IP ACL、Extended MAC ACL、Time-based ACL、Global ACL、Resource sharing in the case of applying an ACL on different physical ports or SVIs、ACL counter、ACL counter only、ACL logging、Displaying ACL resource usage、ACL-based re-marking、Expert-level ACL、IPv4 user-defined function(UDF) ACL、Configuring ACL counter-only globally、ACL matching against the inner 5-tuple of VXLAN packets、IPv6 UDF ACL、ACL matching against the inner 5-tuple of packets passing through the VXLAN

Data Center Features

PFC, ECN, and other data center features

RDMA

Visualization

gRPC

sFlow sampling

QoS

Mapping of IEEE 802.1p, DSCP, and ToS priorities

ACL-based traffic classification

Priority marking/remarking

Multiple queue scheduling mechanisms, including SP, WRR, WFQ, DRR, SP+WRR, SP+WFQ, and SP+DRR

Congestion avoidance mechanisms such as WRED and tail discarding

HA Design

GR for RIP/OSPF/BGP, BFD, DLDP, REUP dual-link fast switching, RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swapping for all cards and power supply modules

Security Features

Network foundation protection policy (NFPP), CPP, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, broadcast packet suppression, hierarchical user management

Management Mode

SNMP v1/v2c/v3, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP, syslog, SPAN/RSPAN/ERSPAN, ZTP, NETCONF, Python, fan and power alarm, and temperature alarm

Other Protocols

DHCP client, DHCP relay, DHCP server, DNS client, ARP proxy, and Syslog
