System Specifications

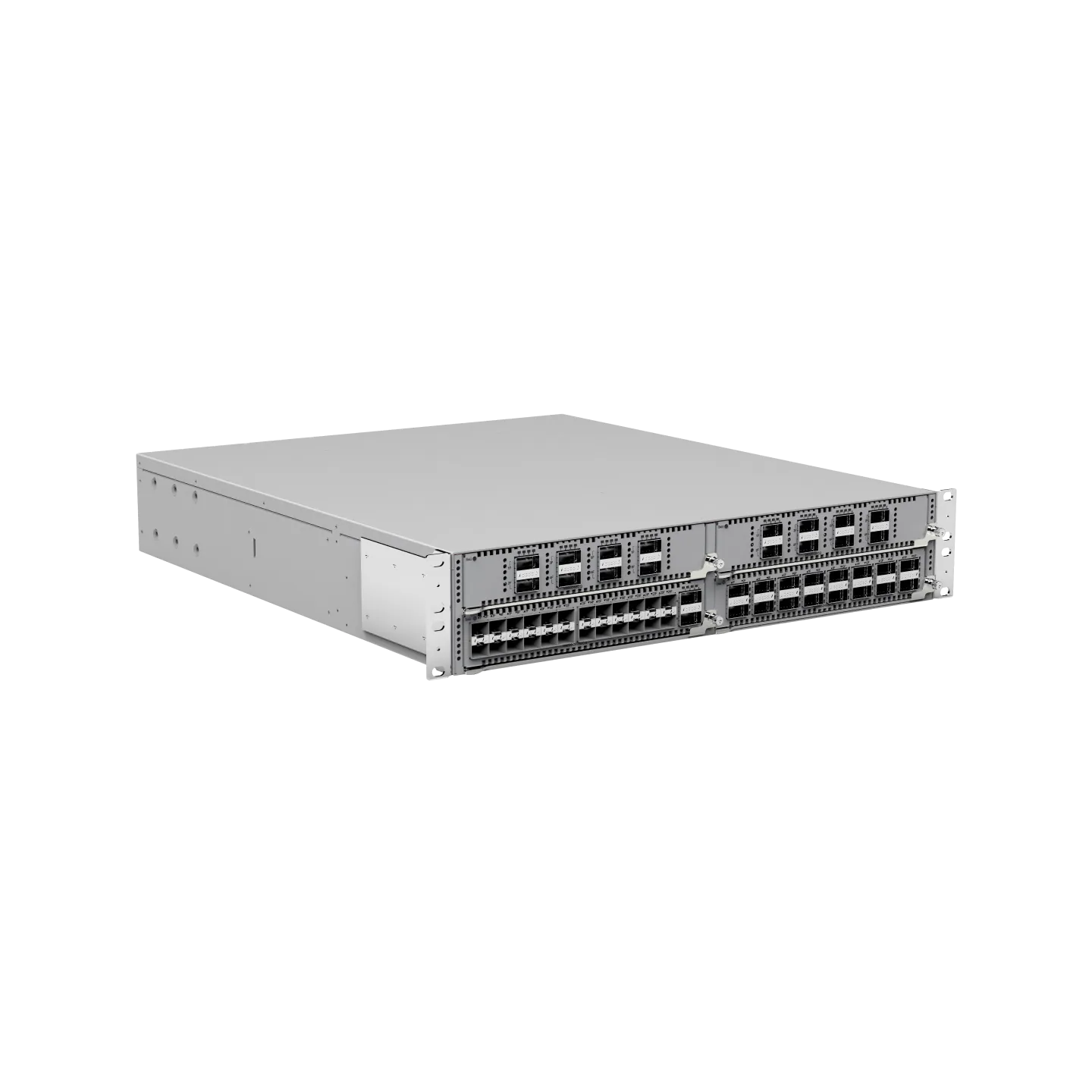

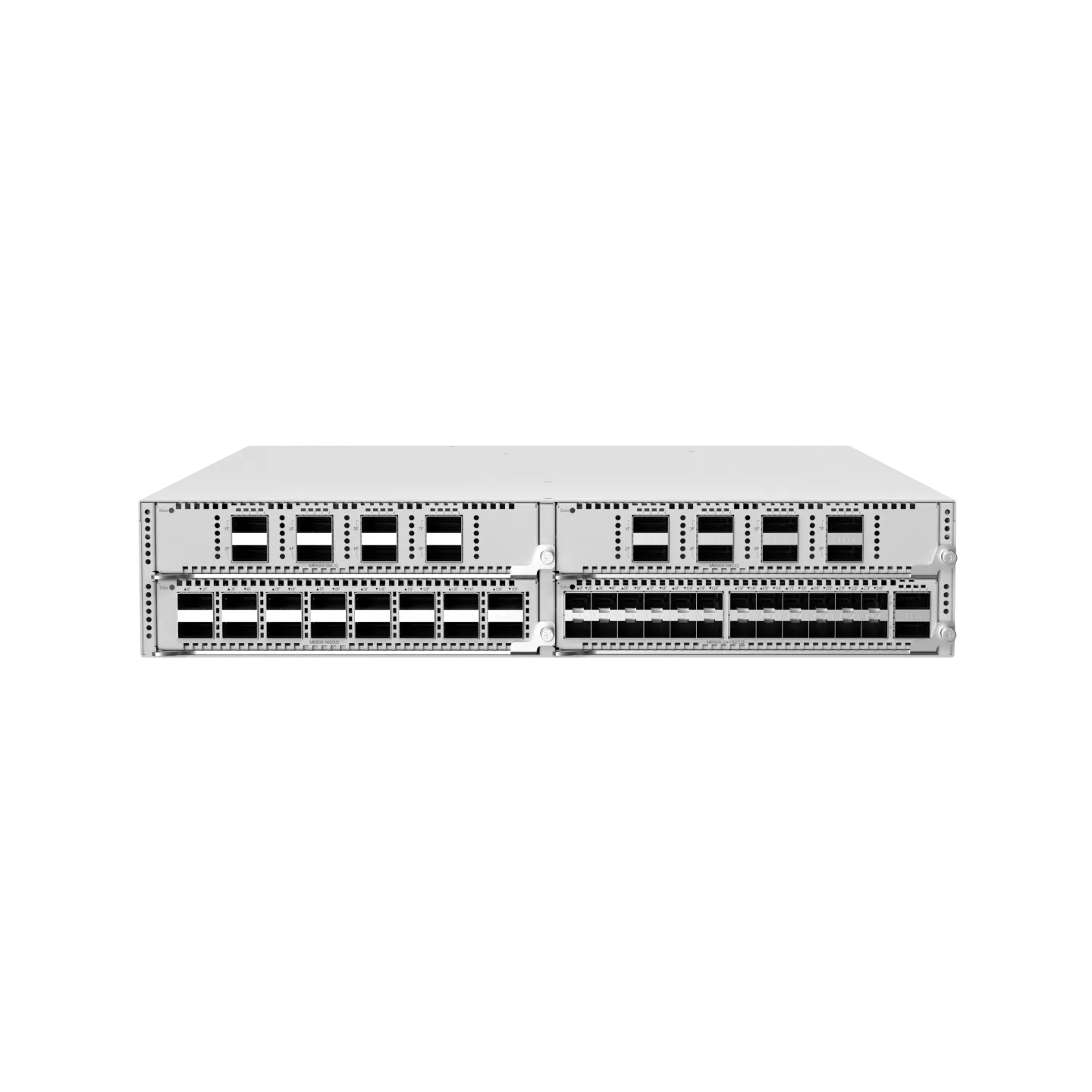

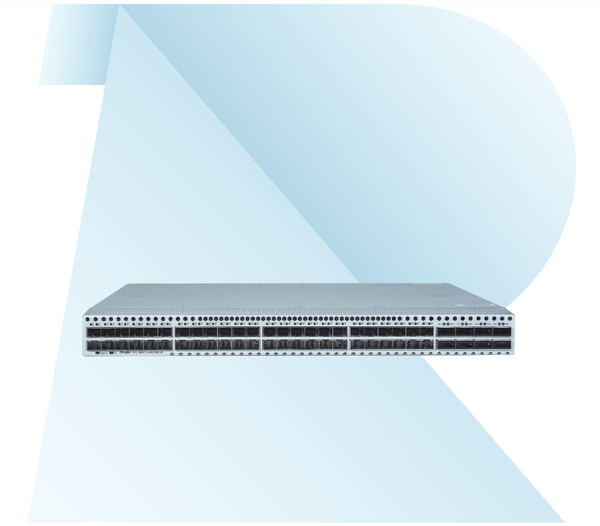

RG-S6510-4C

Ports

25GE, 40GE, and 100GE ports

Slots

4

Expansion Modules

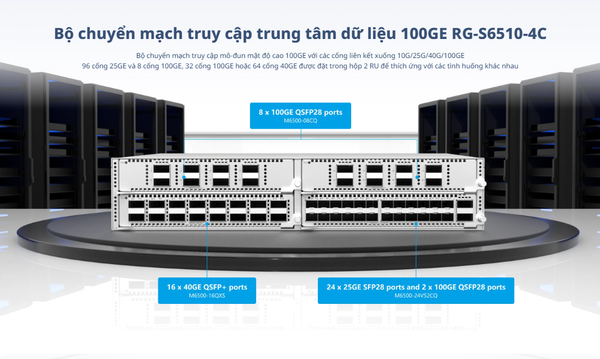

M6500-24VS2CQ, M6500-08CQ, M6500-16QXS

Expansion Module Slots

Power supply module slots

Fan module slots

Management Port

One management port, one console port, and one USB port, compliant with the USB2.0 standard

Switching Capacity

6.4 Tbps

Packet Forwarding Rate

2030 Mpps

802.1Q VLAN

4094

Dimensions and Weight

Dimensions
(W × D × H)

442 mm x 520 mm x 86 mm (17.40 in. x 20.47 in. x 3.39 in., 2 RU)

Weight

About 14 kg (30.86 lbs., including power supply modules and fan modules)

Power Supply and Consumption

AC

Rated voltage: 110 V/220 V

Rated voltage range: 100 V AC to 240 V AC, 50 Hz to 60 Hz

Maximum voltage range: 90 V AC to 264 V AC, 47 Hz to 63 Hz

Rated input current: 5 A to 10 A

High-voltage DC

RG-PA800I-F module

● HVDC voltage range: 180 V DC to 310 V DC

● Rated voltage: 240 V DC

● Max input current: 5 A

RG-PD800I-F module

● Rated voltage range: –36 V DC to –72 V DC

● Rated voltage: –48V DC

● Max input current: 23 A

Maximum Power Consumption

● Max: 650 W

● Typical: 455 W

● Static: 202 W

Environment and Reliability

Operating Temperature

0ºC to 40ºC (32ºF to 104ºF)

Storage temperature

-40 °C to 70 °C (-40 °F to 158 °F)

Operating Humidity

10% RH to 90% RH (Non-condensing)

Storage humidity

5% to 95% RH (non-condensing)

Working altitude

Operating altitude: up to 5000 m (16,404.20 ft.)

Storage altitude: up to 5000 m (16,404.20 ft.)

Software Specifications

RG-S6510-4C

Device virtualization

Virtual Switching Unit 3.0

L2 Protocols

IEEE802.3ad (Link Aggregation Control Protocol), IEEE802.1p, IEEE802.1Q, IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, MLD Snooping, Jumbo Frame (9 KB), IEEE802.1ad (QinQ and selective QinQ), GVRP

L3 Protocols (IPv4)

BGP4, OSPFv2, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing (PBR), Route-policy, Equal-Cost Multi-Path Routing (ECMP), WCMP, VRRP, IGMP v1/v2/v3, PIM-SSM/SM/DM, MSDP, Any-RP

IPv6 Basic Protocols

Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS

IPv6 Features

Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+, MLDv1/v2, PIM-SMv6, manual tunnel, automatic tunnel, IPv4 over IPv6 tunnel, and ISATAP tunnel

Data Center Features

VXLAN routing and VXLAN bridging

EVPN VXLAN

IPv6 VXLAN over IPv4

PFC, ECN, and other data center features

RDMA

M-LAG

OpenFlow 1.3

Visualization

gRPC

sFLOW sampling

INT

ACL

Standard IP-based ACL、Extended MAC-based ACL、Extended IP-bsaed ACL、Expert-level ACL、ACL 80、IPv6 ACL、ACL Logging、Ingress/Egress ACLs、ACL Counter (Ingress and egress counters are supported in interface or global configuration modes)、ACL Re-marking、Global ACL、ACL-based Redirection、Displaying ACL Resources、Processing First Packet of TCP Handshake When Binding the ACL to Restrict SIP、Matching Against 5-Tuple of Pass-by VXLAN Inner IP Packets、The expert-level ACL supports matching the IP flag and DSCP fields of VXLAN inner packets

QoS

Mapping of IEEE 802.1p, DSCP, and ToS priorities
ACL-based traffic classification
Priority marking/remarking
Multiple queue scheduling mechanisms, including SP, WRR, DRR, SP+WRR, and SP+DRR
Congestion avoidance mechanisms such as WRED and tail discarding

Virtualization

Virtual Switching Unit

Buffer Management

Buffer status monitoring and management, and identification of burst traffic

HA Design

GR for RIP/OSPF/BGP, BFD, REUP dual-link fast switching and RLDP unidirectional link detection, 1+1 power redundancy, and fan redundancy, and hot swapping for all cards and power supply modules

Security Features

Network Foundation Protection Policy (NFPP), CPP, DDoS attack defense, illegitimate data packet detection, data encryption, source IP spoofing prevention, IP scanning prevention, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, RIPv2, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, uRPF, broadcast packet suppression, DHCP Snooping, gateway ARP spoofing prevention, and ARP check

Management Mode

SNMP v1/v2c/v3, Netconf, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP clock, Syslog, SPAN/RSPAN, Telemetry, ZTP, Python, fan and power supply alarm, and temperature alarm

Other Protocols

DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP relay, ARP Proxy, and Syslog

Specification

RG-S6510-4C

Safety

● NM EN 62368-1

● NM CEI62368-1

● IEC 62368-1

● EN 62368-1

● BS EN 62368-1

● UL 62368-1

● CSA C22.2#62368-1

● GB 4943.1

Electromagnetic Compatibility (EMC)

● EN 61000-4-2

● EN 61000-4-3

● EN 61000-4-4

● EN 61000-4-5

● EN 61000-4-6

● EN 61000-4-11

● EN 55032

● EN 55035

● EN 61000-3-2

● EN 61000-3-3

● EN IEC 61000-3-2

● EN IEC 61000-3-3

● EN 300 386

● ETSI EN 300 386

● NM EN 55035

● NM EN 61000-3-2

● NM EN 61000-3-3

● BS EN 55032

● BS EN 55035

● BS EN 61000-3-2

● BS EN 61000-3-3

● CNS 13438

● FCC CFR Title 47, Part 15, Subpart B

● ANSI C63.4-2014

● ICES-003 Issue 7

● GB/T 9254.1

Environment

● 2011/65/EU EN 50581

● 2012/19/EU EN 50419

● (EC) No.1907/2006

● GB/T 26572
