Hardware Specifications

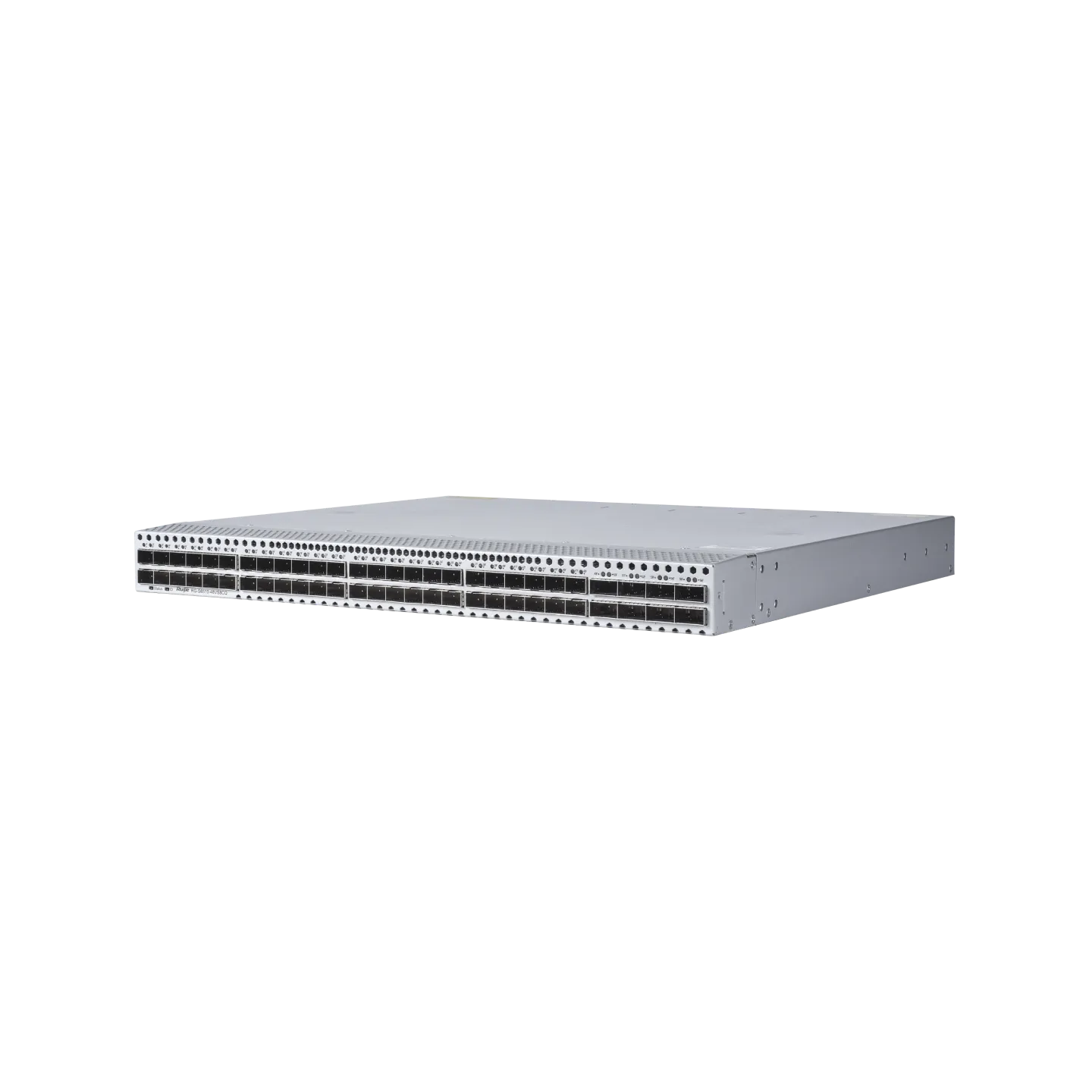

RG-S6250-48XS8CQ

System

Switching capacity

4.8 Tbps

Packet forwarding rate

2,000 Mpps

Ports

Port density

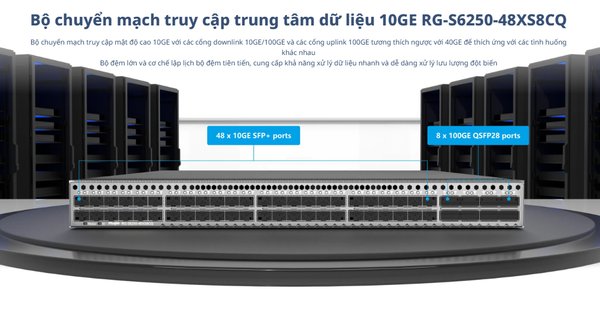

48 x 10GE SFP+ ports + 8 x 100GE QSFP28 ports

Expansion modules

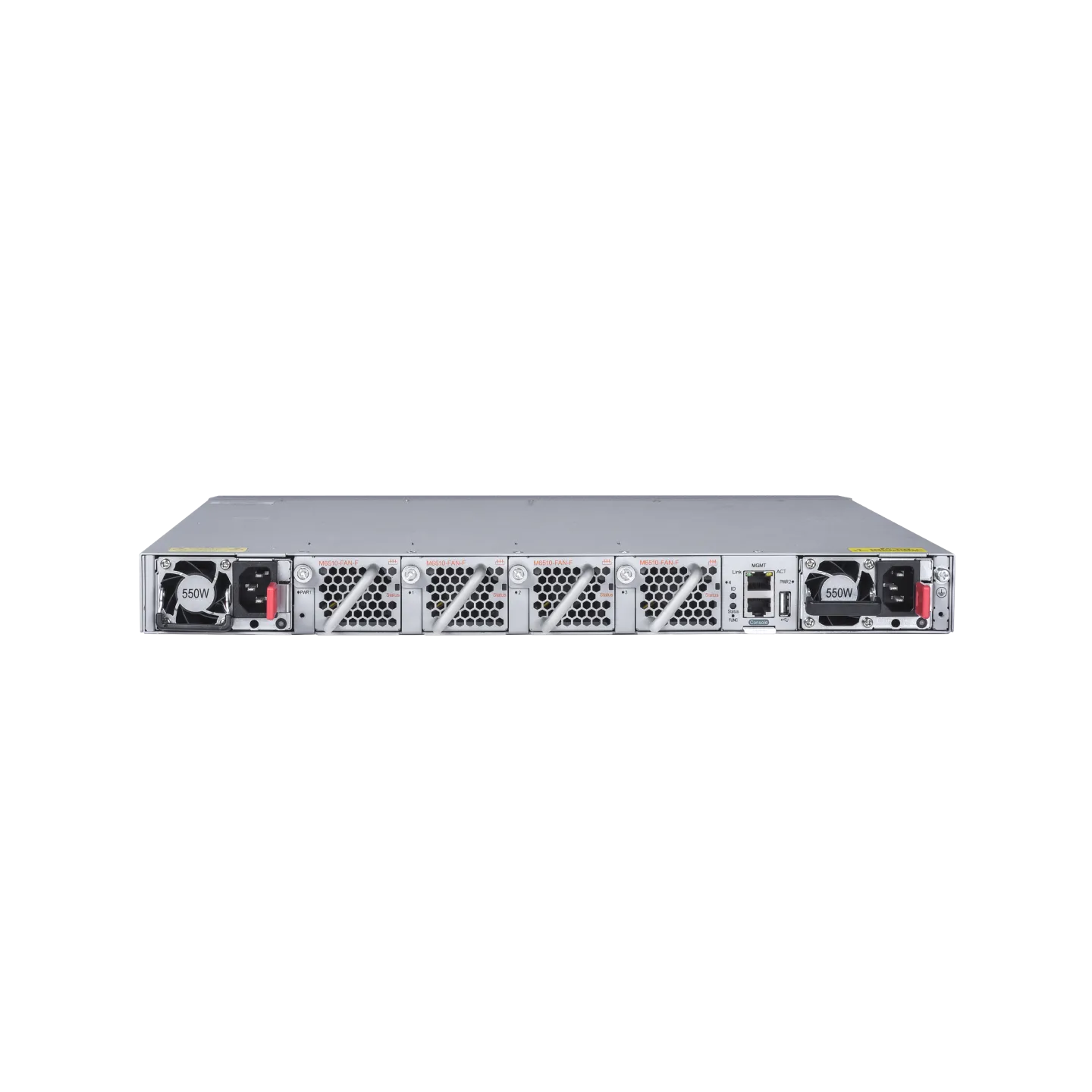

Two power module slots, supporting 1+1 redundancy

Four fan module slots, supporting 3+1 redundancy

Management port

1 x MGMT port, 1 x console port, and 1 x USB 2.0 port

802.1Q VLAN

4,094

Dimensions and Weight

Dimensions

(W x D x H)

442 mm x 387 mm x 44 mm (17.40 in. x 15.24 in. x 1.73 in., 1 RU)

Weight

8.2 kg (18.08 lbs., including two power modules and four fan modules)

Power Supply and Consumption

AC input

Rated voltage: 110 V AC/220 V AC

Rated voltage range: 100 V AC to 240 V AC (50 Hz to 60 Hz)

Max. voltage range: 90 V AC to 264 V AC (47 Hz to 63 Hz)

Rated current range: 7.2 A to 3.5 A

HVDC input

Rated voltage: 240 V DC

Max. voltage range: 180 V DC to 310 V DC

Rated current: 3.6 A

LVDC input

Voltage range:

–36 V DC to –72 V DC

Rated voltage:

–48 V DC

Rated current:

23 A

Maximum Power Consumption

● Max: 300 W

● Typical: 165 W

● Static: 98 W

Environment and Reliability

Operating temperature

0ºC to 40ºC (32°F to 104°F)

Storage temperature

–40°C to +70°C (–40°F to +158 °F)

Operating humidity

10% RH to 90% RH (non-condensing)

Storage humidity

5% to 95% RH (non-condensing)

Working altitude

Operating altitude: up to 5,000 m (16,404.20 ft.)
Storage altitude: up to 5,000 m (16,404.20 ft.)

Software Specifications

RG-S6250-48XS8CQ

Layer 2 protocols

IEEE802.3ae (10GBASE), IEEE802.3ak, IEEE802.3an, IEEE802.3x, IEEE802.3ad (static link aggregation, LACP, MLAG), IEEE802.1p, IEEE802.1Q, IEEE802.1D (STP), STP Root Guard, BPDU Guard, IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping , MLD Snooping, Jumbo Frame (9 Kbytes),

IEEE802.1ad (QinQ, selective QinQ), GVRP, access, trunk, and hybrid interfaces, LLDP, static MAC address, MAC address filter, MAC address limit

N/A

Layer 3 protocols (IPv4)

Static routing, BGP4, OSPFv2, IS-IS, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing (PBR), routing policy, ECMP, WCMP, VRRP, IGMP v1/v2/v3, PIM-SSM/SM/DM, MSDP, Any-RP, and BFD for BGP/IS-IS/OSPF/static routing, manual tunnel, GRE tunnel

Basic IPv6 protocols

Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMPv6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTPv6, IPv6 MIB for SNMP, VRRPv6, and IPv6 QoS

IPv6 features

Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+, IS-ISv6, IPv6 VRRP, MLD v1/v2, PIM-SMv6, manually configured tunnel, GRE tunnel, automatic tunnel, IPv4 over IPv6 tunnel, and ISATAP tunnel

Data center features

VXLAN routing and VXLAN bridging

EVPN Virtual eXtensible LAN (VXLAN)

VXLAN mapping

IPv4 VXLAN over IPv4

IPv6 VXLAN over IPv4

IPv4 VXLAN over IPv6

IPv6 VXLAN over IPv6

MLAG

OpenFlow 1.3

PFC, ECN

Visualization

gRPC

sFlow sampling

IPFIX sampling

QoS

802.1p, DSCP, and ToS mapping

ACL-based traffic classification
Priority marking and re-marking

Queue scheduling mechanisms such as SP (PQ), WRR, DRR, SP (PQ) + WRR, and SP (PQ) +DRR

Flexible queue scheduling algorithms based on ports or queues

Congestion avoidance mechanisms such as WRED and tail discarding

Inbound/outbound rate limiting, CAR

MPLS

MPLS VPN

Virtualization

VSU

Buffer management

Buffer usage monitoring and traffic microburst identification

High availability

GR for RIP/OSPF/BGP, BFD, DLDP, VRRP, VRRP load balancing/dual-active, BFD for VRRP, REUP, RLDP, 1+1 power redundancy and fan redundancy, and hot swappable line cards and power modules

Security features

Network Foundation Protection Policy (NFPP), CPU Protection Policy (CPP), DDoS/DoS attack defense, ICMP attack defense, unauthorized packet detection, data encryption, source IP spoofing defense, IP scanning attack defense, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL, port-based ACL, or VLAN-based ACL, cleartext and MD5-based authentication for OSPF, RIPv2, and BGPv4 packets, Telnet login from specified IP addresses, uRPF, broadcast packet suppression, DHCP snooping, ARP spoofing defense (ARP anti-spoofing), ARP check, and hierarchical user management

Management mode

SNMP v1/v2c/v3, Telnet, Console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP Syslog, SPAN/RSPAN/ERSPAN, Telemetry, ZTP, NETCONF, Python, fan and power alarm, temperature alarm, and configuration rollback

Other protocols

DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP Relay, Proxy ARP, and Syslog

Specifications

RG-S6250-48XS8CQ

Safety

● IEC 62368-1

● EN 62368-1

● NM EN 62368-1

● NM CEI 62368-1

● EN IEC 62368-1

● BS EN IEC 62368-1

● UL 62368-1

● CSA C22.2#62368-1

● GB 4943.1

Electromagnetic Compatibility (EMC)

● EN 55032

● EN 55035

● EN IEC 61000-3-2

● EN IEC 61000-3-3

● EN 61000-3-3

● EN 300 386

● ETSI EN 300 386

● NM EN 55035

● NM EN CEI61000-3-2

● NM EN 61000-3-3

● CNS 13438

● FCC CFR Title 47,

● Part 15, Subpart B

● ANSI C63.4-2014

● ICES-003 Issue 7

● GB/T 9254.1

Environment

● 2011/65/EU EN 50581

● 2012/19/EU EN 50419

● (EC) No.1907/2006

● GB/T 26572
