System Specifications

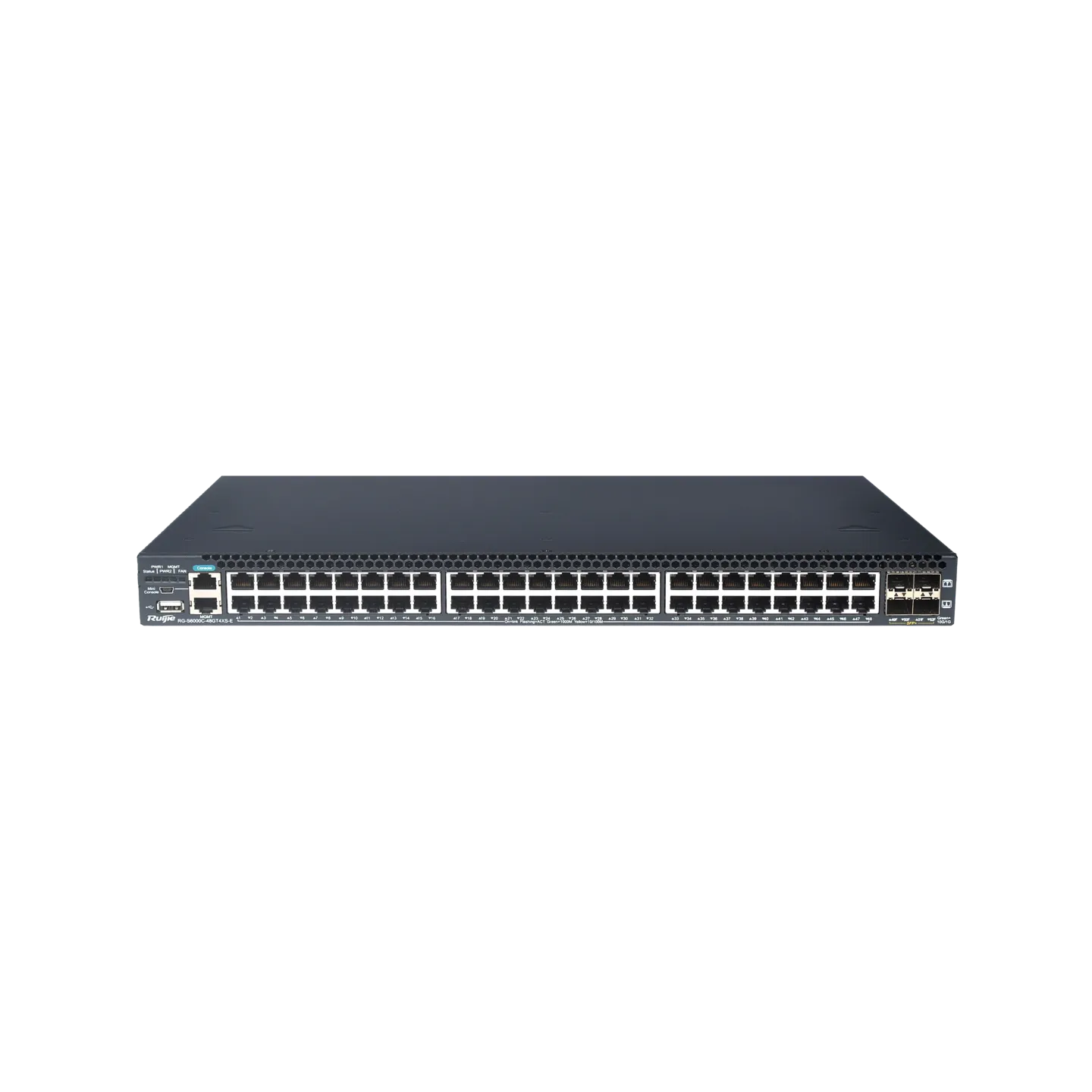

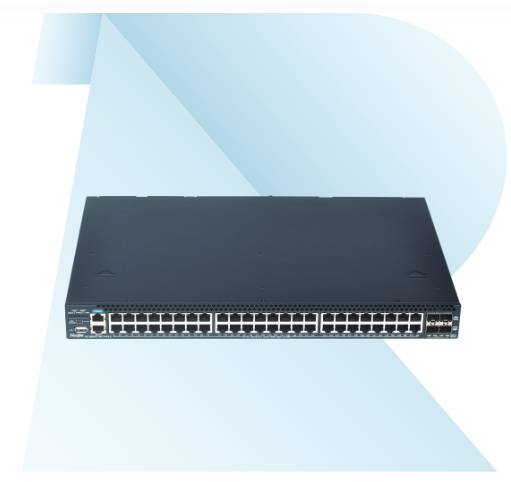

RG-S6000C-48GT4XS-E

Fixed ports

48 x 1GBASE-T ports + 4 x 10GE SFP+ ports

Expansion modules

Fixed configuration chassis without expansion module slots

Two power module slots

One fan module slot

Switching capacity

256Gbps

Packet forwarding rate

192Mpps

Dimensions

Dimensions (W x D x H)

440 mm x 300 mm x 44 mm (17.32 in. x 11.81 in. x 1.73 in., 1 RU)

Weight

4.8 kg (10.58 lbs., including two power modules and one fan modules)

Power Supply and Consumption

Input power requirement

RG-PA70I (AC input):

Rated voltage range: 100 V AC to 240 V AC (50 Hz to 60 Hz)

Max voltage range: 90 V AC to 264 V AC (47 Hz to 63 Hz)

Max input current: 2 A

RG-PA70I (HVDC input):

Rated voltage: 240 V DC

Max voltage range: 120 V DC to 340 V DC

Max input current: 2 A

RG-PD70I (DC input):

Rated voltage: –48 V DC

Max voltage range: –36 V DC to –72 V DC

Max input current: 3.15 A

Max. power consumption

60 W

Fan

Fan speed regulating and fault alarming

Temperature alarm

Supported

Environment and Reliability

Temperature

Operating temperature: 0°C to 50°C (32°F to 122°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F)

Humidity

Operating humidity: 10% to 90% RH
Storage humidity: 5% to 95% RH

Working altitude

Operating altitude: up to 5000 m (16,404.20 ft.)
Storage altitude: up to 5000 m (16,404.20 ft.)

Software Specifications

RG-S6000C-48GT4XS-E

Next-generation data center features (*)

Cloud computing and virtualization features:

(*) VEPA

(*) VM discovery and automatic migration of security policies

L2 features

Ethernet(Frame format: Ethernet II/10GE SFP+ port, supporting 1GE optical module (including 1GE SFP module and 1GE SFP-GT module)/Optical module information display, fault alarm, and diagnosis parameter measurement (OSPF+/SFP+/SFP)/Flow control)、IEEE802.1d STP、IEEE802.1w RSTP、MSTP、STP、Aggregate interface、Storm suppression、Mirroring、MMU、VLAN、Basic QinQ、Selective QinQ、MAC address、RLDP、LLDP、Layer 2 protocol tunnel、REUP、G.8032 (Standard RERP, compatible with other G.8032 standards)、Cable diagnosis、IGMP snooping、MLD snooping

IPv4 features

Ping、Traceroute、ECMP、ECMP for static recursive routing、Unicast Reverse Path Forwarding (URPF)、IPIP、IPv6/IPv4 over IPv4 GRE tunnel、IPv4 VRF

VLAN

4K IEEE 802.1Q VLANs

Port-based VLAN

MAC-based VLAN

Protocol-based VLAN

Private VLAN

Voice VLAN

Private VLAN

IP subnet-based VLAN

GVRP

QinQ

Basic QinQ

Selective QinQ

N:1 and 1:1 VLAN switching

Link aggregation

LACP (IEEE 802.3ad)

SPAN

N:1 mirroring

1:N mirroring

Traffic-based mirroring

Spanning Tree Protocol

STP, RSTP, and MSTP

DHCP

DHCP server

DHCP client

DHCP snooping

DHCP relay

IPv6 DHCP snooping

IPv6 DHCP client

IPv6 DHCP relay

Basic IPv6 protocols

IPv6 addressing, Neighbor Discovery (ND), ND Snooping, ICMPv6, Stateless Auto Configuration, Path MTU Discovery

IP routing

Static routing

RIP, RIPng

OSPF, OSPFv3, IS-IS, IS-IS v6

BGP, BGP4+

Equal-cost multi-path routing (ECMP)

Packet-based and traffic-based load balancing

Multi-VPN-Instance CE (MCE)

Multicast

IGMPv1/v2/v3 and IGMP proxy

IGMPv1/v2/v3 snooping

IGMP filtering, IGMP fast leave

PIM-DM, PIM-SM, PIM-SSM

MLD snooping, MLD

PIM for IPv6

MSDP

MPLS

MPLS forwarding、LDP、LSP

IPv6 tunneling

Manually configured tunnel, automatic tunnel, ISATAP, IPv4 over IPv6, GRE tunnel, and other tunneling technologies

ACL

The following flexible and diversified hardware ACLs are available:
Standard IP ACL (IP-based hardware ACL)
Extended IP ACL (hardware ACL based on the IP address or TCP/UDP port ID)
Extended MAC ACL (hardware ACL based on the source MAC address, destination MAC address, and optional Ethernet type)
Time-based ACL
Expert-level ACL (hardware ACL based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port ID, protocol type, and time)
ACL80
IPv6 ACL

QoS

Port traffic identification

Port traffic rate limiting

802.1p/DSCP/ToS traffic classification

Eight priority queues per port

SP, WRR, DRR, SP+WFQ, SP+WRR, SP+DRR, and RED/WRED queue scheduling

Security features

3-tuple binding (IP address, MAC address, and port)

3-tuple binding (IPv6 address, MAC address, and port)

MAC address filtering

Port- and MAC-based 802.1x authentication

MAC Bypass Authentication (MAB)

Portal authentication and Portal 2.0 authentication

ARP check

Dynamic ARP inspection (DAI)

ARP rate limiting

ARP spoofing prevention

Broadcast storm suppression

Hierarchical management and password protection

RADIUS and TACAS+

AAA (IPv4/IPv6) for device login management

SSH and SSHv2.0

BPDU Guard

IP source guard

CPP and NFPP

Port protection

Management features

SNMPv1/v2c/v3, CLI (Telnet/Console), RMON (1,2,4,9), SSH, Syslog, NTP/SNTP, SNMP over IPv6, IPv6 MIB support for SNMP, SSHv6, Telnet v6, FTP/TFTPv6, DNSv6, NTP for v6, Traceroute v6

sFLOW using the random sampling technology to conduct flow information sampling on the switch traffic

High reliability

VSU
GR for RIP, GR for OSPF, GR for BGP, and GR for other routing protocols
BFD
ERPS (G.8032)
REUP
RLDP
1+1 power redundancy
One modular fan module with front-to-rear airflow
2+1 fan redundancy
Hot swapping of power modules

Energy Efficient Ethernet (EEE)

IEEE 802.3az-compliant EEE: When EEE is enabled, power consumption of ports is significantly reduced.

Compatibility with cloud platform

(Names not listed in order)

Specifications

RG-S6000C-48GT4XS-E

Safety

● IEC 62368-1

● EN 62368-1

● EN IEC 62368-1

● BS EN IEC 62368-1

● UL 62368-1

● CSA C22.2#62368-1

● UL60950-1

● CAN/CSA C22.2 NO. 60950-1-07

● GB 4943.1

Electromagnetic Compatibility (EMC)

● EN 55032

● EN 61000-3-3

● EN IEC 61000-3-2

● EN 55035

● EN 300 386

● ETSI EN 300 386

● ICES-003 Issue 7

● ANSI C63.4-2014

● FCC CFR Title 47, Part 15, Subpart B

● ICES-003 Issue 6

● GB/T 9254.1

Environment

● 2011/65/EU EN 50581

● 2012/19/EU EN 50419

● (EC) No.1907/2006

● GB/T 26572
