Hardware Specifications

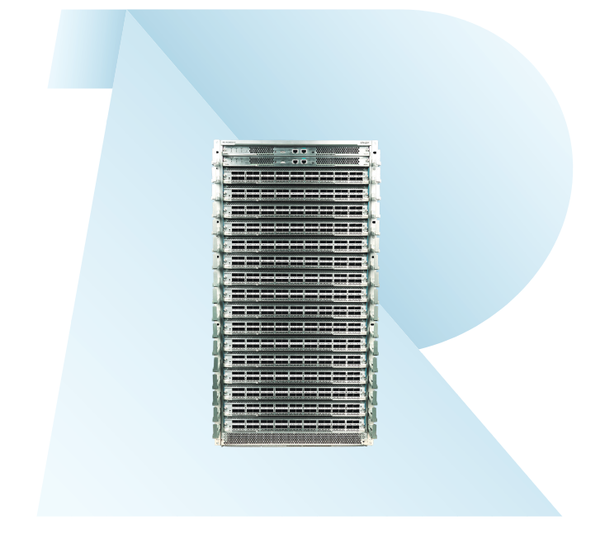

RG-N18018-X

RG-N18010-X

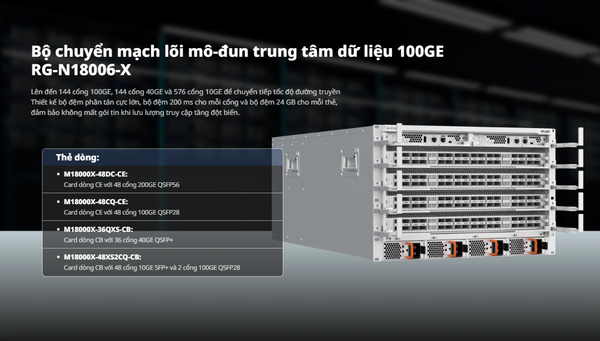

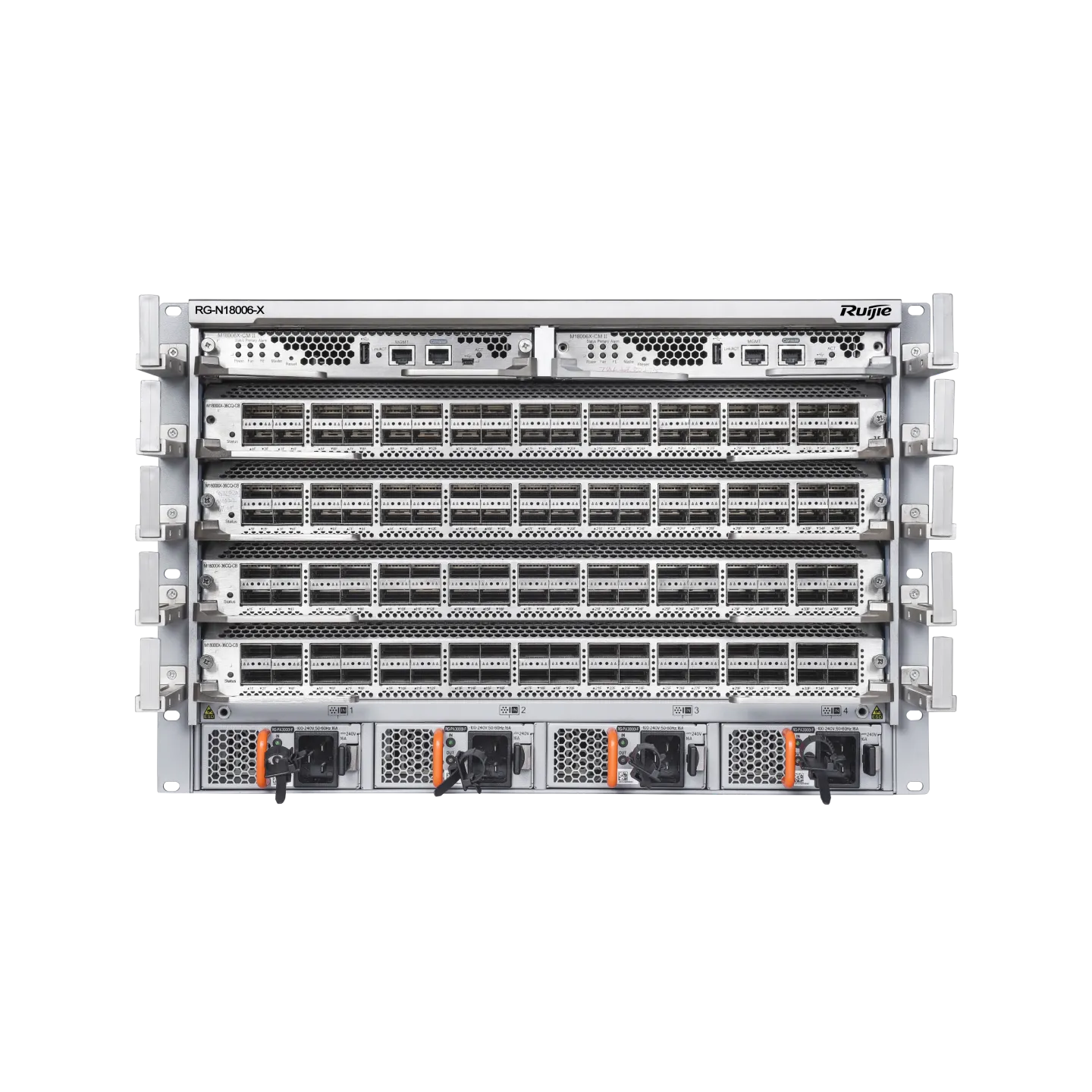

RG-N18006-X

Module slots

18 (2 for supervisor modules)

10 (2 for supervisor modules)

6 (2 for supervisor modules)

Switch fabric module slots

6

6

6

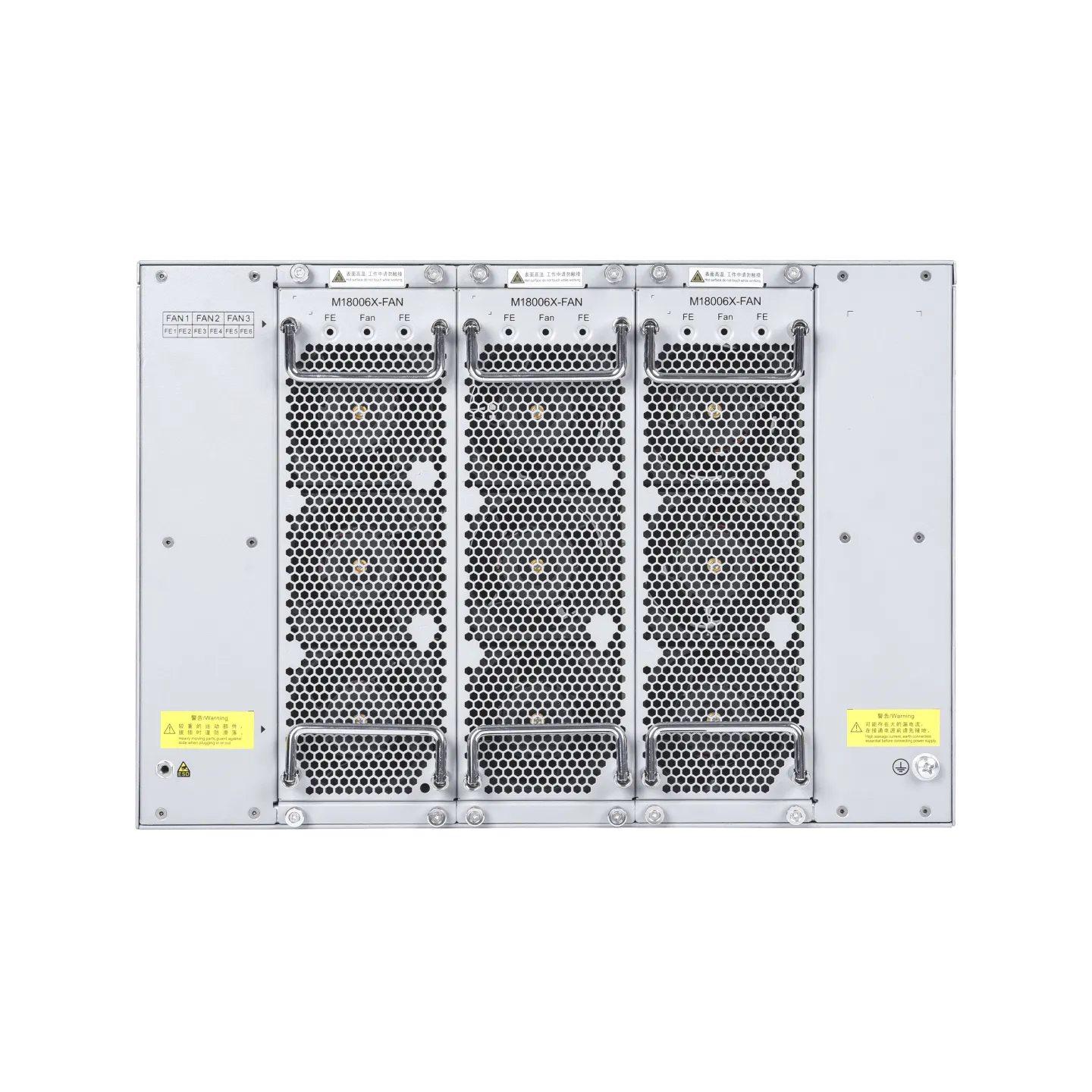

Fan module

Three fan module slots

Three fan module slots

Three fan module slots

Power module

Sixteen power module slots

Eight power module slots

Four power module slots

Switching capacity

307.2 Tbps

153.6 Tbps

28.8 Tbps

Packet forwarding rate

69,120 Mpps

34,560 Mpps

17,280 Mpps

Large buffer

Ultralarge distributed buffer design and 200 ms buffer for each port to prevent packet loss in burst traffic

Dimensions
(W × D × H)

Without cable management brackets:
442 mm x 961 mm x 934.5 mm
(17.40 in. x 37.83 in. x 36.79 in., 21 RU)

With cable management brackets:
 442 mm x 1017 mm x 934.5 mm
(17.40 in. x 40.03 in. x 36.79 in., 21 RU)

Without cable management brackets:
 442 mm x 961 mm x 534 mm
(17.40 in. x 37.83 in. x 21.02 in., 12 RU)

With cable management brackets:
442 mm x 1017 mm x 534 mm,
(17.40 in. x 40.03 in. x 21.02 in., 12 RU)

Without cable management brackets:
442 mm x 893 mm x 308.4 mm
(17.40 in. x 35.16 in. x 12.14 in.,7 RU)

With cable management brackets:
442 mm x 956 mm x 308.4 mm
(17.40 in. x 37.64 in. x 12.14 in.,7 RU)

Weight

120.88 kg (including the fan)

52 kg (including the fan)

49 kg (including the fan)

Power supply

RG-PA2700I:

AC: 100 V AC to 240 V AC

HVDC: 192 V DC to 350 V DC

RG-PA3000I-F:

AC: 100 V AC to 240 V AC

HVDC: 192 V DC to 350 V DC

Ventilation type

Front-to-rear ventilation

MTBF

≥ 200,000 hours

Operating temperature

0ºC to 40ºC (32ºF to 104ºF)

0°C to 45°C (32°F to 113°F)

Storage temperature

–40ºC to +70ºC (–40ºF to +158ºF)

Operating humidity

10% to 90% RH (non-condensing)

Storage humidity

5% to 95% RH (non-condensing)

Working altitude

up to 5000 m (16404.19 ft.)

Software Specifications

RG-N18018-X

RG-N18010-X

RG-N18006-X

Device virtualization

Virtual Switching Unit 3.0

Data center features

VXLAN bridge

VXLAN gateway

BGP-EVPN VXLAN

VXLAN mapping

IPv6 VXLAN over IPv4

M-LAG

SDN

OpenFlow 1.3.

Traffic analysis

sFLOW

IPFIX

NetFlow

L2 features

Jumbo frame

IEEE 802.3ad (static link aggregation, LACP, cross-card link aggregation, cross-device link aggregation)

IEEE 802.1Q

STP, RSTP, MSTP

GVRP

QinQ

LLDP

Static MAC addresses, address filtering, and limit on the number of MAC addresses

IPv4 features

Static routing, RIP, OSPF, IS-IS, and BGP4

VRRP

ECMP

Policy-based routing

IPv6 features

Static routing, OSPFv3, BGP4+, IS-ISv6, and MLDv1/v2

VRRPv3

ECMP

Policy-based routing

Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, ICMPv6

Multicast

IGMP v1/v2/v3

IGMP Snooping

IGMP Proxy

MLDv1, MLDv2

Multicast static routing

Fast leave

ACL

Standard, extended, and expert-level ACLs

Global ACLs

Ingress/Egress ACLs

IPv6 ACLs

QoS

Mapping of IEEE 802.1p, DSCP, and ToS priorities
Priority marking/remarking
Multiple queue scheduling mechanisms, including SP, WRR, DRR, SP+WRR, and SP+DRR
Congestion avoidance mechanisms such as RED and WRED

Port-based rate limit

Reliability

Independent switch fabric modules and independent supervisor engines to implement thorough separation of the forwarding plane
from the control plane

1+1 redundancy for supervisor modules

N+1 redundancy for switch fabric modules

N+M redundancy for power supply modules and fan modules

Midplane-free design to avoid single point of failures

Hot swapping of components

Hot patching

BPDU guard/Loop guard/Root guard

ISSU

NSR

DLDP

FRR

Micro-segmentation security isolation

GR for OSPF/IS-IS/BGP

BFD for VRRP/OSPF/BGP4/ISIS/ISISv6/static routing

Security

Network Foundation Protection Policy (NFPP) and CPU protection policy (CPP) to prevent protocol packet attacks

Prevention against DDoS, ARP, and ICMP attacks

DAI, port security, IP source guard, and protected ports

uRPF

RADIUS and TACACS user login authentication, password security, hierarchical user management, and password protection

Source IP address restriction

Function of not sending unknown multicast packets to the CPU

Suppression of unknown multicast, unknown broadcast, and unknown multicast packets

SSHv2, providing encrypted security channels for user login

ITU-T Y.1731

Prevention against MAC address flapping

Plaintext and MD5 ciphertext authentication for OSPF, RIPv2, and BGP4 packets

Management

Console/AUX Modem/Telnet/SSH2.0 CLI configuration

FTP, TFTP, Xmodem, and SFTP

SNMP V1/V2c/V3

NETCONF

RMON

NTP clock

Fault alarm and auto-recovery

System operation logging

Traffic analysis

Zero-touch provisioning (ZTP)

Reliable network service (RNS), which probes specific services provided by the peer device to monitor the service availability

Telemetry

Buffer status monitoring and traffic microburst identification

Port mirroring, traffic mirroring, and ERSPAN

Physical ports on all line cards support the routing mode and IP addresses can be configured independently.

Monitoring of fan modules and power supply modules

Specification

RG-N18018-X

RG-N18010-X

RG-N18006-X

Safety

● GB 4943.1

● GB 4943.1

● EN 62368-1

● IEC 62368-1

● NM EN 62368-1

● NM CEI 62368-1

● UL 62368-1

● CSA C22.2#62368-1

● GB 4943.1

Electromagnetic Compatibility (EMC)

● VCCI-CLSPR 32

● GB/T 9254.1

● VCCI-CLSPR 32

● GB/T 9254.1

● EN 55032

● EN IEC 61000-3-2

● NM EN CEI 61000-3-2

● EN 61000-3-3

● NM EN 61000-3-3

● EN 55035

● NM EN 55035

● ETSI EN 300 386

● FCC CFR Title 47, Part 15, Subpart B

● ANSI C63.4-2014

● ICES-003 Issue 7

● GB/T 9254.1

Environment

● 2011/65/EU EN 50581

● 2012/19/EU EN 50419

● (EC) No.1907/2006

● GB/T 26572

● 2011/65/EU EN 50581

● 2012/19/EU EN 50419

● (EC) No.1907/2006

● GB/T 26572

● 2011/65/EU EN 50581

● 2012/19/EU EN 50419

● (EC) No.1907/2006

● GB/T 26572
