Port Specifications

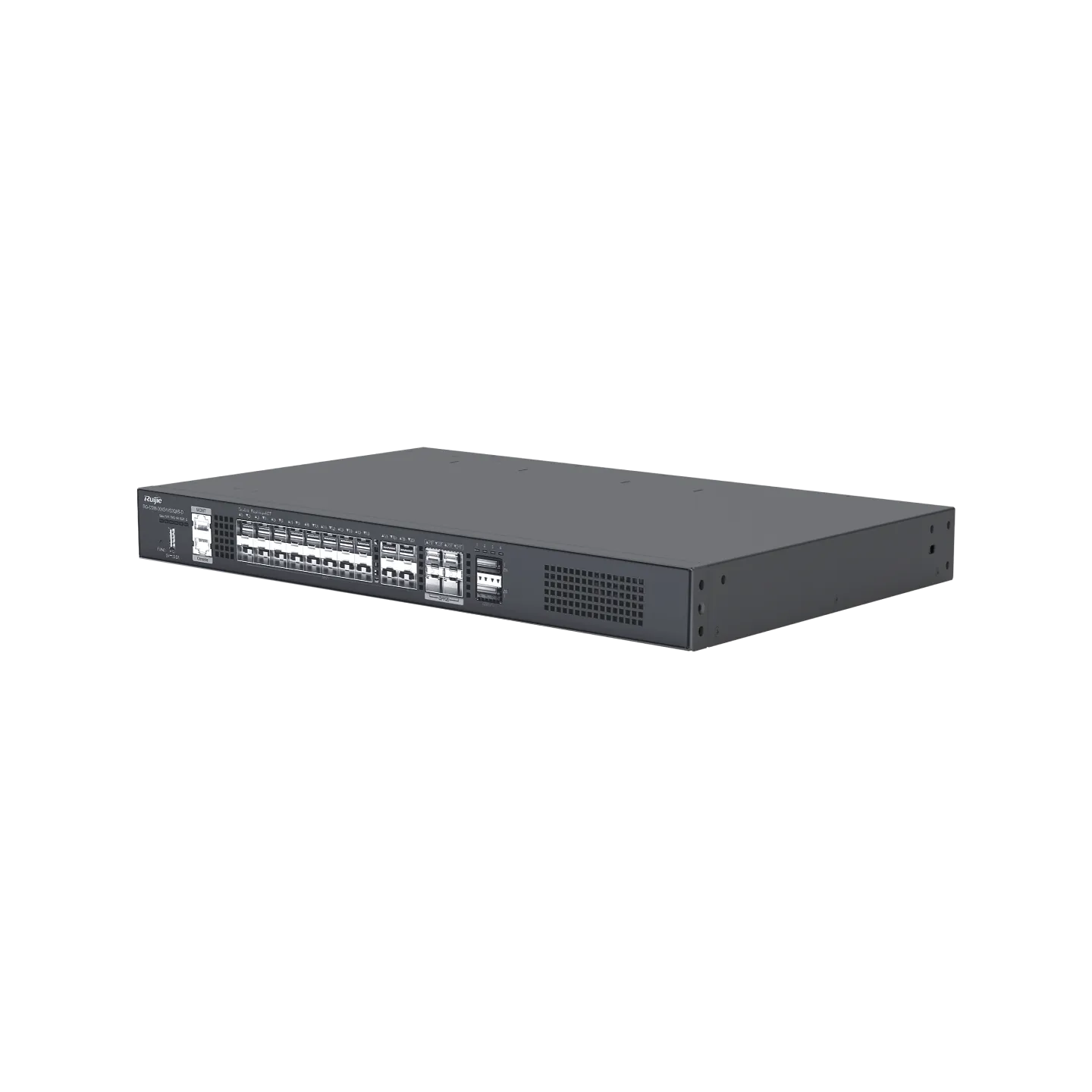

RG-CS86-20XS4VS2QXS-D

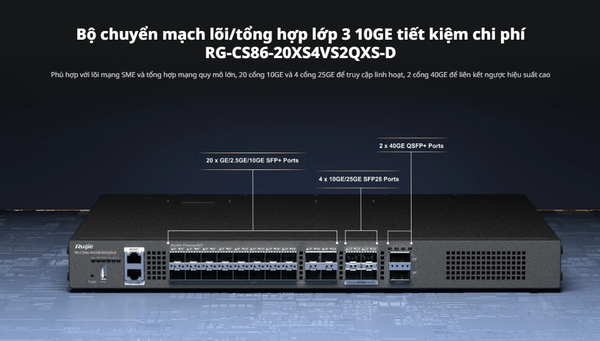

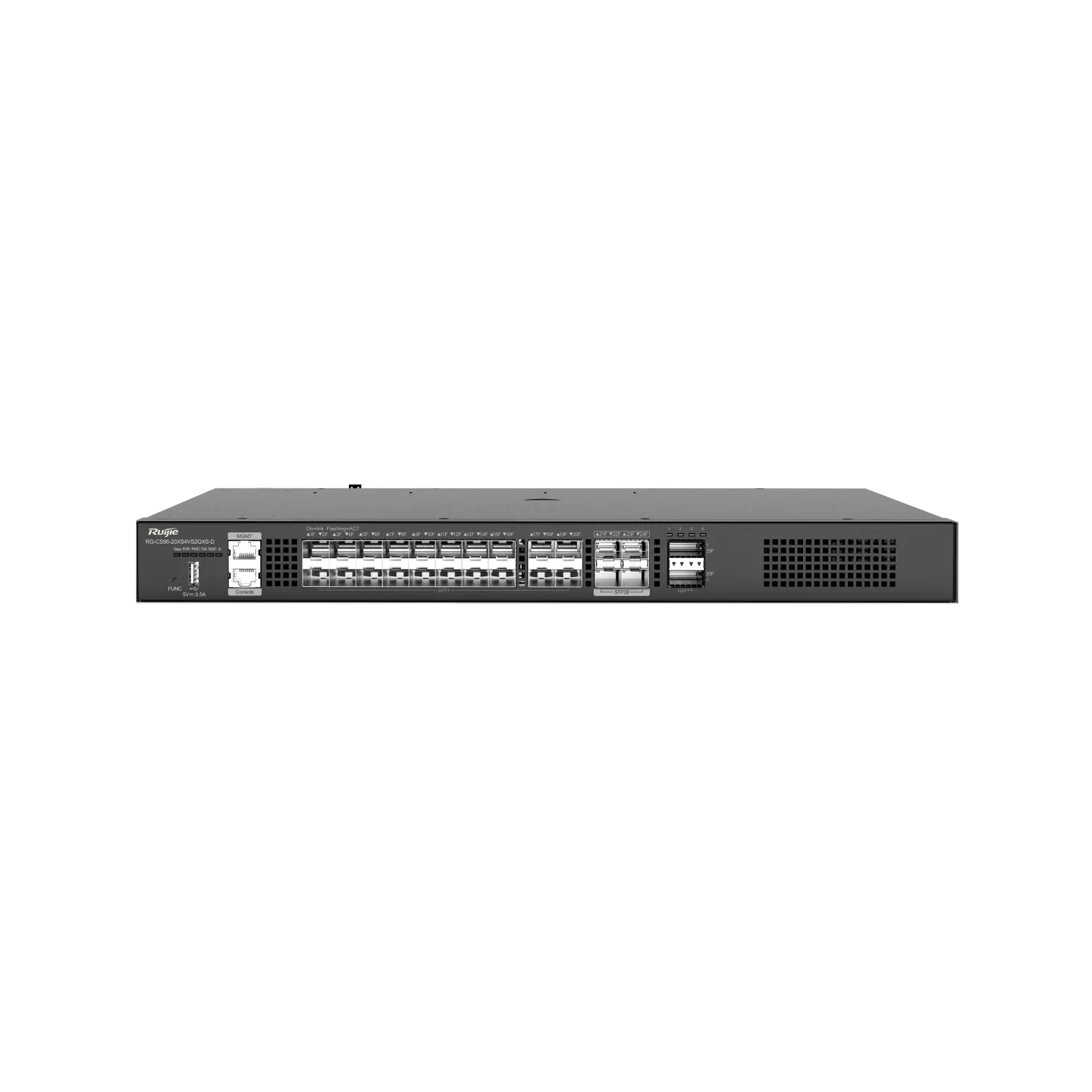

Fixed service port

20 x 1GE/2.5GE/10GE SFP+ ports

4 x 10GE/25GE SFP28 ports

2 x 40GE QSFP+ ports

Note: One switch provides a maximum of 32 x 10GE ports.

Module slot

2 x power module slots

2 x fan power module slots

Power module

RG-PA150I-F

Fan module

M1SFAN I-F (pre-installed 2)

Fixed management port

1 x RJ45 console port

1 x RJ45 MGMT port

USB

1 x USB port

System Specifications

RG-CS86-20XS4VS2QXS-D

Packet forwarding rate

570 Mpps

Switching capacity

760 Gbps

BootROM

16 MB (storing boot software for 1+1 boot redundancy)

Flash memory

1 GB (storing boot software for 1+1 boot redundancy)

Memory

1 GB

MAC address table size

32,768

ARP table size

16,000

Number of IPv4 unicast routes

16,000

Number of IPv4 multicast routes

4,000

Number of IPv6 unicast routes

16,000

Number of IPv6 multicast routes

2,000

Number of ACEs

In: 2,500

Out: 1,000

Number of VSU members

2

Dimensions and Weight

RG-CS86-20XS4VS2QXS-D

Unit dimensions (W x D x H)

440 mm x 330 mm x 43.6 mm (17.32 in. x 12.99 in. x 1.72 in.)

Shipping dimensions (W x D x H)

545 mm x 500 mm x 232 mm (21.46 in. x 19.69 in. x 9.13 in.)

Rack height

1 RU

Unit weight

4.6 kg (10.14 lbs) (empty chassis with 2 fan modules)

Shipping weight

6.40 kg (14.11 lbs) (empty chassis with 2 fan modules)

Power Supply and Consumption

RG-CS86-20XS4VS2QXS-D

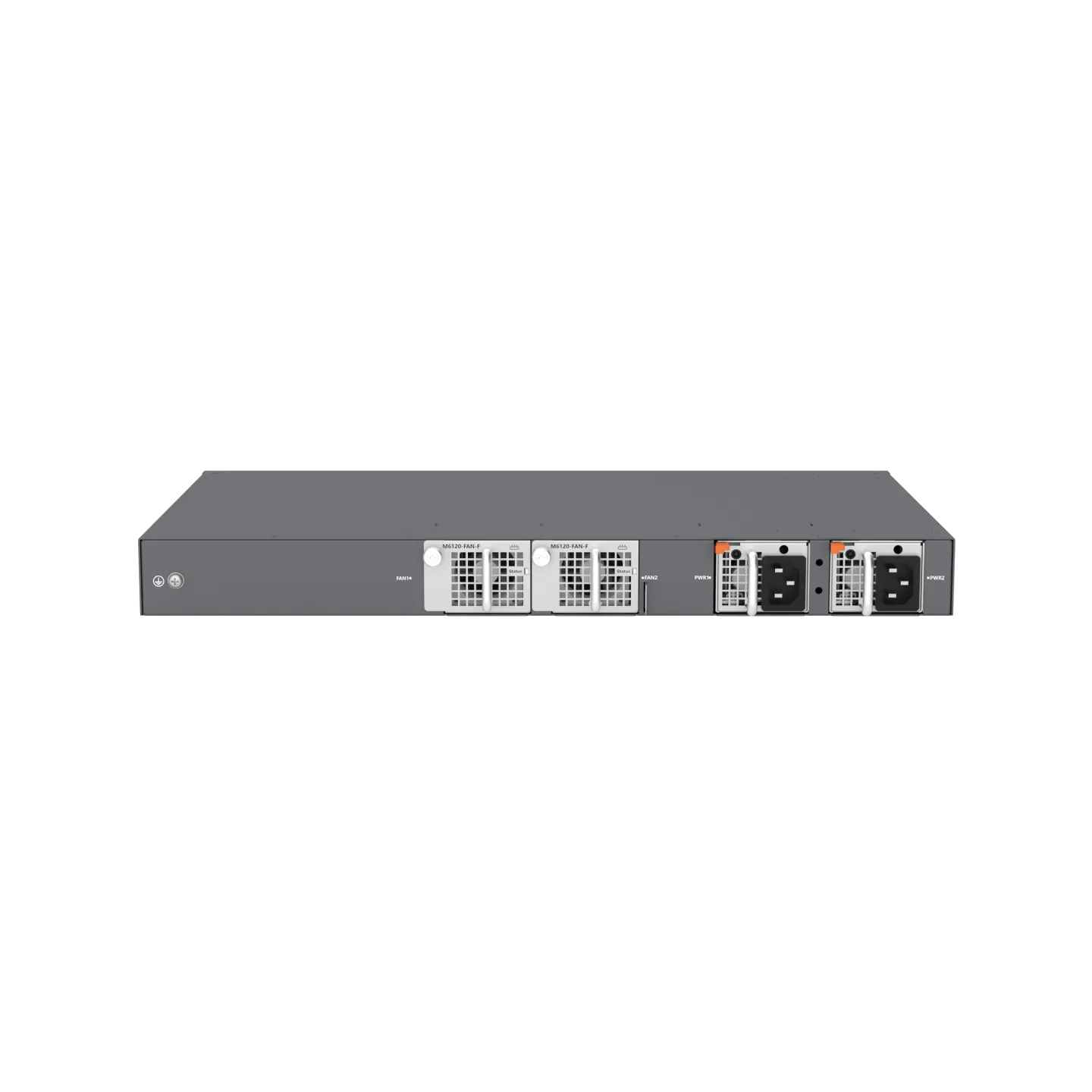

Power supply

2 x pluggable power modules

Power module redundancy

1+1 power redundancy

Power input

RG-PA150I-F (AC input):

● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz

● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz

● Maximum input current: 3 A

Maximum output power

RG-PA150I-F: 150 W

Maximum power consumption

85 W

Environment and Reliability

RG-CS86-20XS4VS2QXS-D

Temperature

Operating temperature: 0°C to 50°C (32°F to 122°F)

Storage temperature: –40°C to +70°C (–40°F to +158°F)

Humidity

Operating humidity: 10% to 90% RH (non-condensing)

Storage humidity: 5% to 95% RH (non-condensing)

Altitude

Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)

Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)

Mean time between failure (MTBF)

200,000 hours (about 22 years)

Fan

2 x pluggable fan modules

Fan redundancy

1+1 redundancy

Heat dissipation

Fan cooling, front-to-rear airflow

Acoustic noise

≤ 78 dB

Power module hot swapping

Supported

USB hot swapping

Supported

Cable hot swapping

Supported

Power supply monitoring

Monitoring of power supply model and status

Power supply failure alarming

Fan monitoring

Fan speed regulating and alarm function

Temperature monitoring

Temperature alarming

ESD

ESD Contact/Air Discharge: 6kV/8kV

ESD Susceptibility Contact/Air Discharge: 8 kV/15kV

Surge protection

MGMT port: 4 kV

Service port: 10 kV

Power port: common mode 6 kV, differential mode 6 kV

Conformal coating

Conformal coating supported (key components only)

Certifications and Regulatory Compliance

RG-CS86-20XS4VS2QXS-D

Safety regulation

IEC 62368-1

EMC regulation

EN 300386, EN 55032 Class A, EN 55035,

EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3,

EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11

RG-CS86-20XS4VS2QXS-D

Feature

Description

Ethernet Switching

Jumbo frame (maximum length: 9,216 bytes)

IEEE 802.1Q (supporting 4K VLANs)

Voice VLAN

Super VLAN, private VLAN

MAC VLAN, port-based VLAN, protocol-based VLAN, IP subnet-based VLAN

GVRP

Basic QinQ

STP, RSTP, and MSTP

ERPS (G.8032)

LLDP/LLDP-MED

LACP (IEEE 802.3ad)

IP Service

ARP

DHCP client, DHCP relay, and DHCP server

DHCP snooping

DNS

DHCPv6 client and DHCPv6 relay

DHCPv6 snooping

Neighbor Discovery (ND) and ND snooping

IP Routing

Static routing

RIP and RIPng

OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6

BGP4 and BGP4+

IPv4 and IPv6 VRF

IPv4 and IPv6 PBR

Equal and Weighted Cost Multi-Path (ECMP)

Multicast

IGMP v1/v2/v3, and IGMP proxy

IGMP v1/v2/v3 snooping

PIM-DM, PIM-SM, and PIM-SSM

MSDP

MLD v1/v2

MLD snooping v1/v2

PIM-SMv6 and PIM-SSM v6

IGMP filtering, IGMP immediate leave

ACL and QoS

Standard IP ACLs

Extended IP ACLs

Extended MAC ACLs

Time-based ACLs

Expert-level ACLs

ACL80

IPv6 ACL

ACL redirection

Port traffic rate limiting

Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ

Congestion avoidance: tail drop, RED, and WRED

802.1p/DSCP/ToS traffic classification

Eight priority queues per port

Security

Multiple AAA modes

RADIUS and TACAS+

Port-based and MAC-based 802.1x authentication

Web authentication

HTTPS

SSHv1, SSHv2

Global IP-MAC binding

Port isolation and port security

IP source guard

SAVI

CPP and NFPP

Strict and loose RPF

Reliability

REUP, RLDP, DLDP

IPv4 VRRP v2/v3 and IPv6 VRRP

BFD

Hot swapping of power modules and cables

3-level fan speed adjustment

Fan fault alarm

Device virtualization

VSU

NMS and maintenance

SPAN, RSPAN, and ERSPAN

sFlow

NTP and SNTP

FTP and TFTP

SNMP v1/v2/v3

RMON (1, 2, 3, 9)

Telnet

NETCONF

CWMP (TR-069) standard protocol

gRPC

Cloud and SON
