Port Specifications

RG-CS83-24GT4XS-PD

RG-CS83-48GT4XS-PD

Fixed service port

24 x 10/100/1000BASE-T ports, supporting PoE/PoE+

4 x 1GE/10GE SFP+ ports

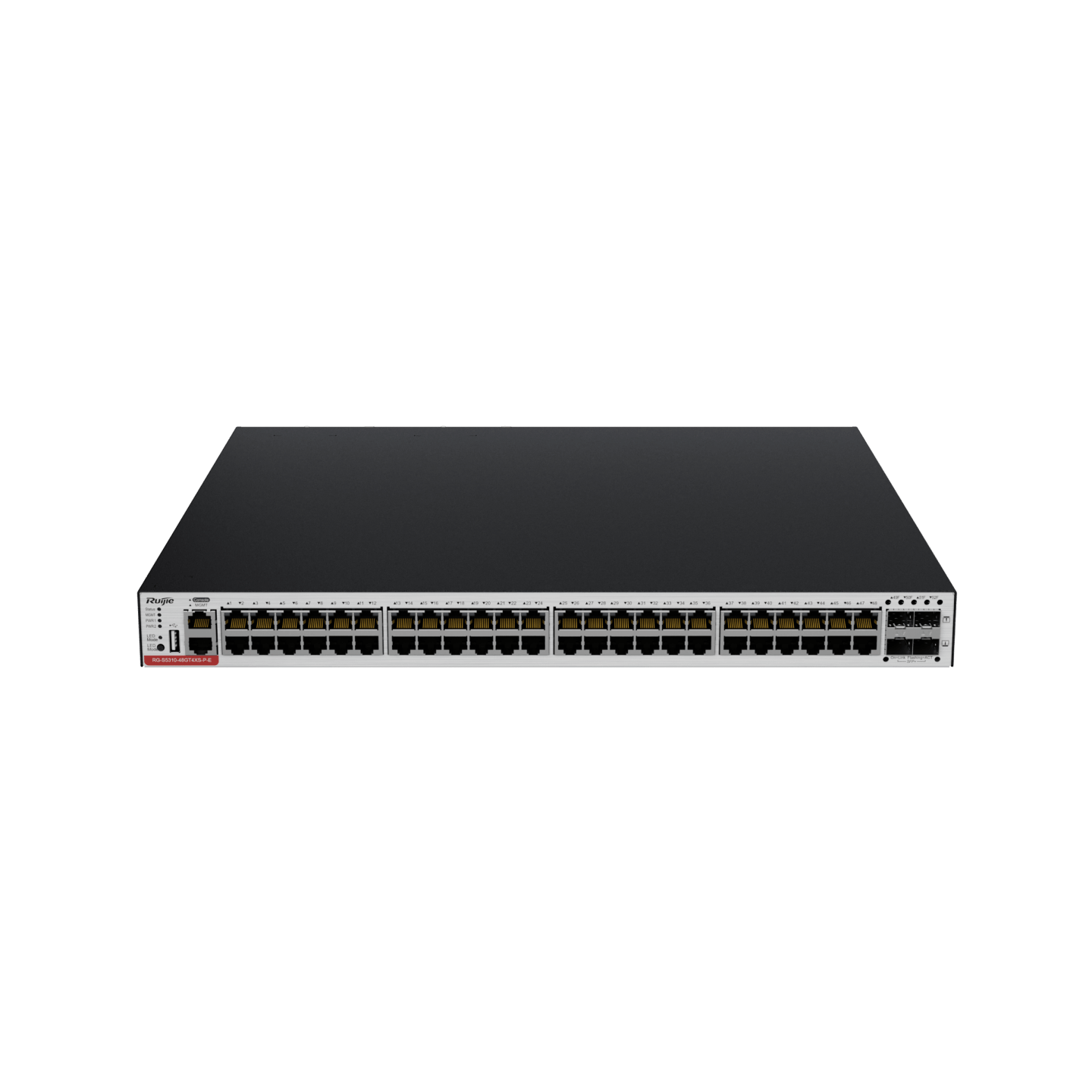

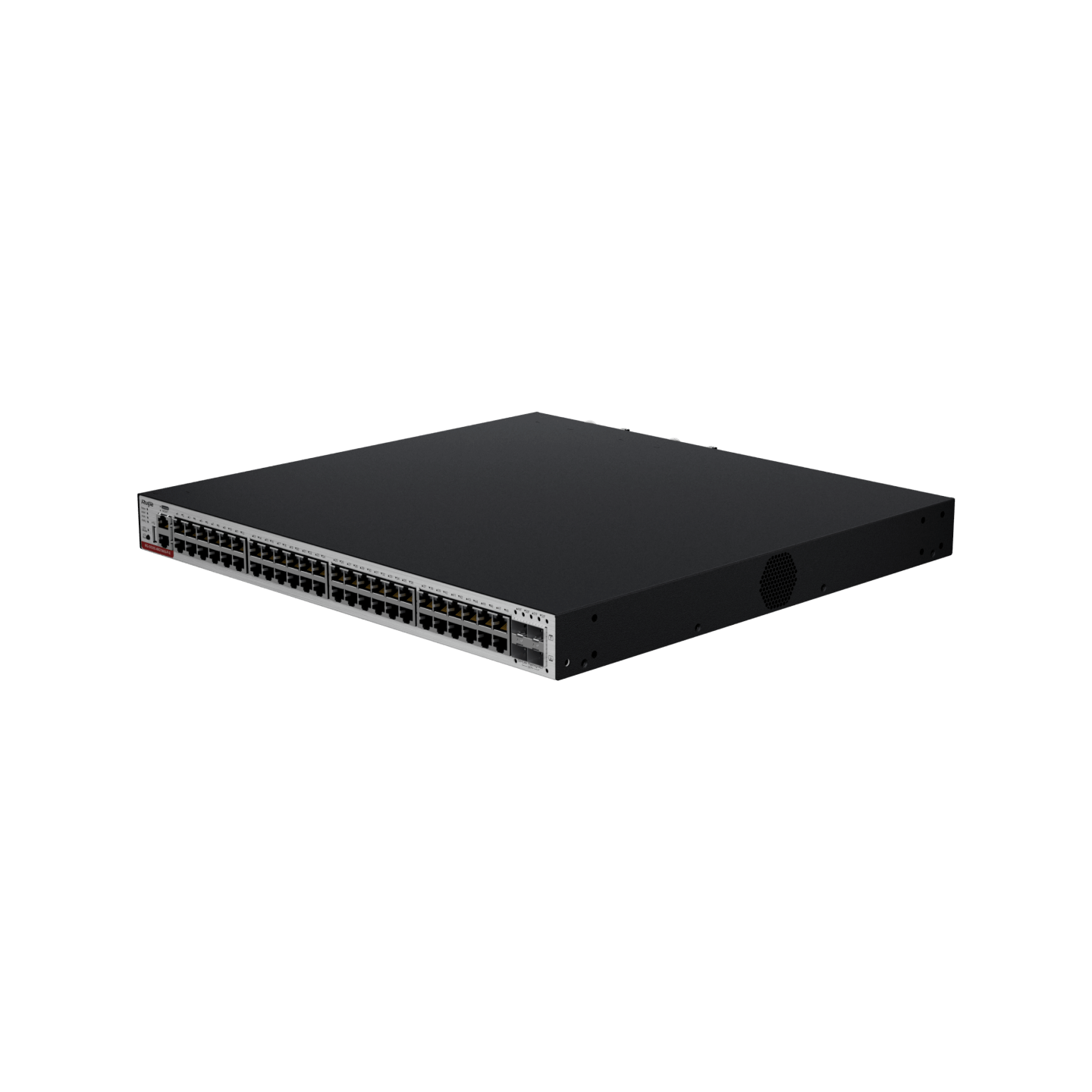

48 x 10/100/1000BASE-T ports, supporting PoE/PoE+

4 x 1GE/10GE SFP+ ports

Module slot

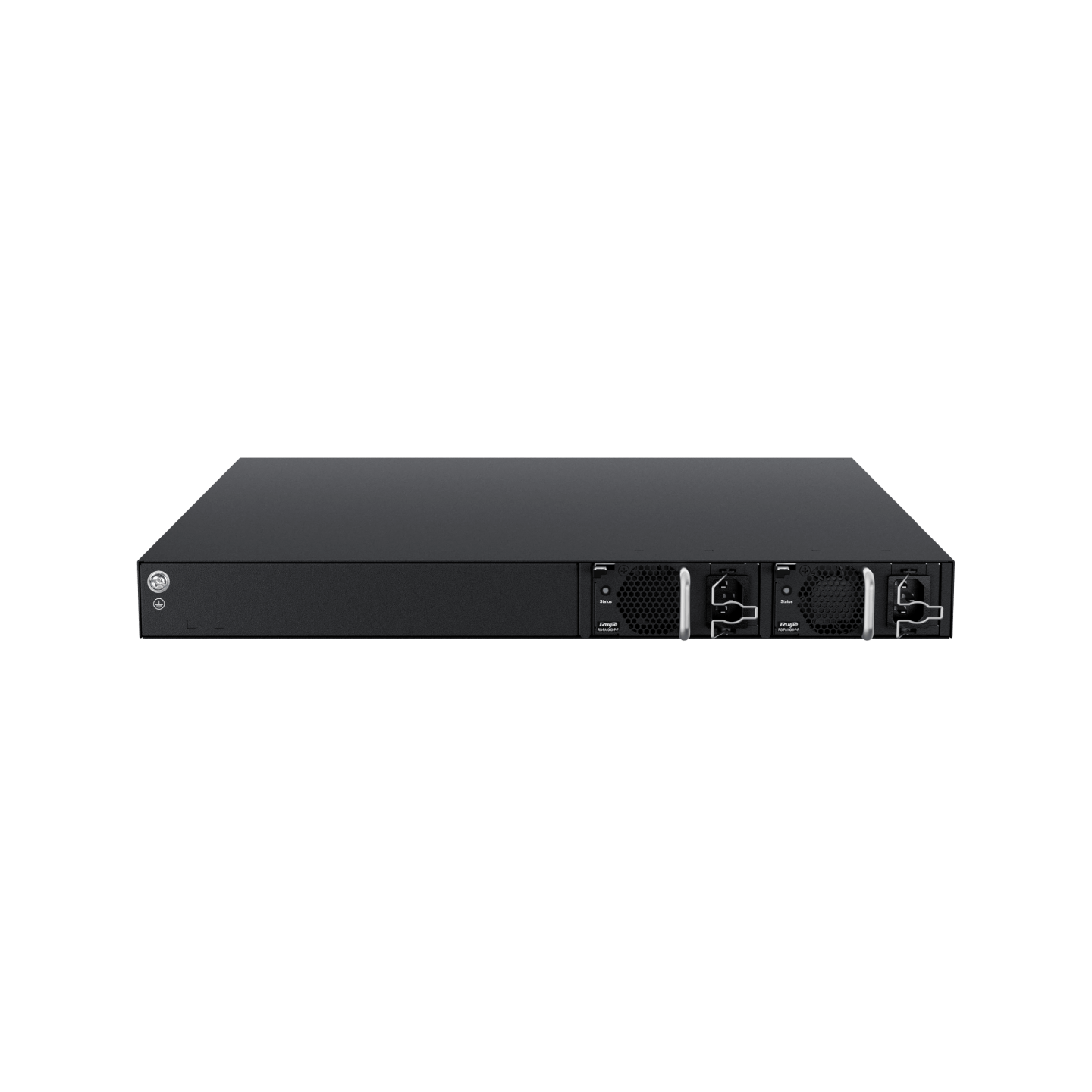

2 x power module slots

Power module

RG-PA600I-P-F

RG-PA1000I-P-F

Fixed management ports

1 x RJ45 console port

1 x RJ45 MGMT port

USB

1 x USB port

System Specifications

RG-CS83-24GT4XS-PD

RG-CS83-48GT4XS-PD

Packet forwarding rate

96 Mpps

132 Mpps

Switching capacity

128 Gbps

176 Gbps

CPU

Dual-core CPU, each core with the clock speed of 1.2 GHz

BootROM

16 MB

Flash memory

2 GB

Memory

1 GB

Switch buffer

3 MB

MAC address table size

32,000

ARP table size

4,000

Number of IPv4 unicast routes

8,000

Number of IPv4 multicast routes

2,500

Number of IPv6 unicast routes

4,000

Number of IPv6 multicast routes

1,200

Number of ACEs

Ingress: 3,500

Egress:1,500

Number of VSU members

4

VLAN translation

4,094

Dimensions and Weight

RG-CS83-24GT4XS-PD

RG-CS83-48GT4XS-PD

Unit dimensions (W x D x H)

442 mm x 420 mm x 43.6 mm (17.40 in.x 16.54 in.x 1.72 in.)

Shipping dimensions (W x D x H)

570 mm x 565 mm x 172 mm (22.44 in. x 22.24 in. x 6.77 in.)

Rack height

1 RU

Unit weight

4.3 kg (9.48 lbs)

4.6 kg (10.14 lbs)

Shipping weight

6.78 kg (14.95 lbs)

6.98 kg (15.39 lbs)

Power Supply and Consumption

RG-CS83-24GT4XS-PD

RG-CS83-48GT4XS-PD

Power supply

2 x pluggable power modules

Power module redundancy

For dual power supplies, 1+1 power redundancy is supported only when the total PoE load of the device is less than the PoE output power of a single power supply

Power input

RG-PA600I-P-F (AC input):

● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz

● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz

● Maximum input current: 8 A

RG-PA1000I-P-F (AC input 1):

● Rated input voltage: 100 V AC to 130 V AC, 50 Hz to 60 Hz

● Maximum input voltage: 90 V AC to 143 V AC, 47 Hz to 63 Hz

● Maximum input current: 12 A

RG-PA1000I-P-F (AC input 2):

● Rated input voltage: 200 V AC to 240 V AC, 50 Hz to 60 Hz

● Maximum input voltage: 180 V AC to 264 V AC, 47 Hz to 63 Hz

● Maximum input current: 8 A

Maximum output power

RG-PA600I-P-F: 600 W

RG-PA1000I-P-F:

● 100 V AC to 130 V AC: 930 W

● 200 V AC to 240 V AC: 1000 W

Maximum power consumption

65 W (non-PoE)

810 W (full PoE load)

75 W (non-PoE)

1570 W (full PoE load)

PoE port

All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply

PoE power cable pairs

Mode A (1-2, 3-6 pairs)

PoE output power

Each PoE port provides up to 30 W of power

The maximum power depends on the configured power supply.

● 1 x RG-PA600I-P-F: 370 W

● 2 x RG-PA600I-P-F: 740 W; 1 x RG-PA1000I-P-F: 740 W; 2 x RG-PA1000I-P-F: 1480 W; a maximum output of 720 W over 24 ports (30 W x 24)

Each PoE port provides up to 30 W of power

The maximum power depends on the configured power supply.

● 1 x RG-PA600I-P-F: 370 W

● 2 x RG-PA600I-P-F: 740 W

● 1 x RG-PA1000I-P-F: 740 W

● 2 x RG-PA1000I-P-F: 1480 W, a maximum output of 1440 W over 48 ports (30 W x 48)

Energy saving

Supported

Environment and Reliability

RG-CS83-24GT4XS-PD

RG-CS83-48GT4XS-PD

Temperature

Operating temperature: 0°C to 45°C (32°F to 113°F)

Storage temperature: –40°C to +70°C (–40°F to +158°F)

Humidity

Operating humidity: 10% to 90% RH (non-condensing)

Storage humidity: 5% to 95% RH (non-condensing)

Altitude

Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)

Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)

Mean time between failure (MTBF)

356,000 hours (about 41 years, dual power modules)

208,000 hours (about 24 years, single power module)

315,000 hours (about 36 years, dual power modules)

193,000 hours (about 22 years, single power module)

Fan

1 x fixed fan module

Heat dissipation

Left-to-right and front-to-right airflow

Acoustic noise

27°C (80.6°F): 51.6 dB

45°C (113°F): 57.4 dB

27°C (80.6°F): 51.6 dB

45°C (113°F): 58.3 dB

Power module hot swapping

Supported

USB hot swapping

Supported

Cable hot swapping

Supported

Power supply monitoring

Monitoring of power supply model and status

Power supply fault alarming

Fan monitoring

Fan speed adjustment: 3 levels

Automatic speed adjustment

Fan failure alarming

Temperature monitoring

Temperature monitoring, over-temperature alarming

If the ambient temperature exceeds a certain value, the device will perform reset protection

ESD

ESD contact/air discharge: 6 kV/8 kV

ESD susceptibility contact/air discharge: 8 kV/15 kV

Surge protection

MGMT port: 4 kV

Service port: 10 kV

Power port: common mode 6 kV, differential mode 6 kV

Conformal coating

Conformal coating supported (key components only)

Certifications and Regulatory Compliance

RG-CS83-24GT4XS-PD

RG-CS83-48GT4XS-PD

Safety regulation

IEC 62368-1

EMC regulation

EN 300386, EN 55032 Class A, EN 55035,

EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3,

EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11

Communication standard

IEEE 802.3-2005 Ethernet standard

IEEE 803.ab, IEEE 802.3af, IEEE 802.1d, IEEE 802.1q, IEEE 802.3-2005 (802.3ae), and IEEE 802.3ba (2010) standards, supporting 802.1X authentication

RG-CS83-PD Series

Feature

Description

Ethernet switching

Jumbo frame (maximum length: 9216 bytes)

IEEE 802.1Q (4K VLANs)

Voice VLAN

Super VLAN and private VLAN

MAC VLAN, port-based VLAN, protocol-based VLAN, and IP-subnet based VLAN

GVRP

Basic QinQ

Selective QinQ

STP, RSTP, and MSTP

ERPS (G.8032)

LLDP/LLDP-MED

LACP (IEEE 802.3ad)

Non blocking

IP service

ARP

DHCP client, DHCP relay, and DHCP server

DHCP snooping

DNS

DHCPv6 client and DHCPv6 relay

DHCPv6 snooping

Neighbor Discovery (ND) and ND snooping

IP routing

Static routing

RIP, RIPng

OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6

BGP4 and BGP4+

IPv4 and IPv6 VRF

IPv4 and IPv6 PBR

Multicast

IGMP v1/v2/v3, and IGMP proxy

IGMP v1/v2/v3 snooping

PIM-DM, PIM-SM, and PIM-SSM

MSDP

MLD v1/v2

MLD snooping v1/v2

PIM-SMv6, PIM-SSM v6

ACL and QoS

Standard IP ACLs

Extended IP ACLs

Extended MAC ACLs

ACL80

IPv6 ACL

ACL redirection

Port traffic identification

Port traffic rate limiting

802.1p/DSCP/ToS traffic classification

Eight priority queues per interface

Traffic policing: CAR

Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ

Congestion avoidance: tail drop, RED, and WRED

Rate limiting in each queue

L2/L3/L4 packet identification and classification

Security

Multiple AAA modes

RADIUS and TACAS+

Port-based and MAC-based 802.1x authentication

Web authentication

Allowlist

HTTPS

SSHv1, SSHv2

Global IP-MAC binding

ICMP

Port isolation and port security

IP Source Guard

SAVI

Gateway ARP anti-spoofing

CPP(CPU Protection Policy）

NFPP( Network Foundation Protection Policy）

Strict and loose RPF

uRPF ignoring default routes

Reliability

REUP, RLDP, DLDP

IPv4 VRRP v2/v3 and IPv6 VRRP

BFD

Link tracing, fault notification, and remote loopback based on 802.3ah (EFM)

Hot swapping of power modules and cables

3-level fan speed adjustment

Fan fault alarm

Device virtualization

Virtual Switching Unit (VSU)

NMS and maintenance

SPAN, RSPAN, and ERSPAN

sFlow

NTP and SNTP

FTP and TFTP

SNMP v1/v2/v3

RMON (1, 2, 3, 9)

NETCONF

Flow-based mirroring, and N:1 and 1:N port mirroring

CWMP (TR-069) standard protocol

gRPC

Cloud and SON

PoE

IEEE 802.3af and 802.3at

Uninterruptible power supply upon hot start

Port priority
