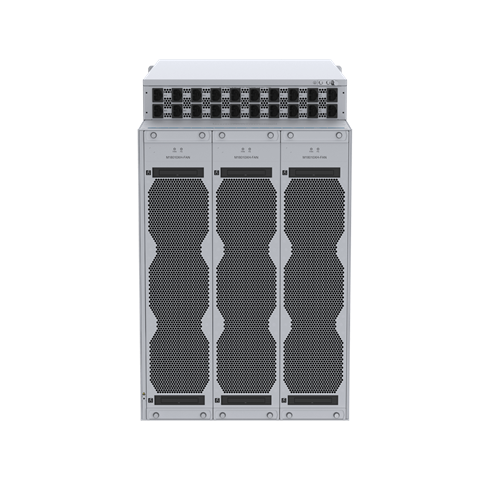

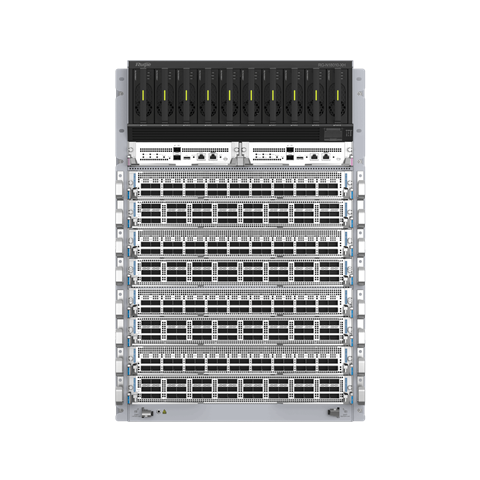

Network High-Density Centralized Modular Core Switch with 100GE/400GE Line Cards and Eight Service Slots

System

RG-N18010-XH

Switching Capacity

645 Tbps/1,935 Tbps

Packet Forwarding Rate

345,600 Mpps

Slots

Module Slots

10 (2 for supervisor modules)

Switch Fabric Module Slots

8

Fan module

Three fan module slots

Power module

Ten power module slots

Dimensions and Weight

Dimensions (W x D x H)

Without cable management brackets: 442 mm x 896 mm x 708 mm (17.40 in. x 35.28 in. x 27.87 in., 16 RU)

With cable management brackets: 442 mm x 935 mm x 708 mm (17.40 in. x 36.81 in. x 27.87 in., 16 RU)

Weight

96.4 kg (212.53 lbs., including the fan)

Power Supply and Consumption

Power Supply

RG-PAH3000I-F:

● AC: 100 V AC to 176 V AC, power: 1,500 W

● AC: 176 V AC to 240 V AC, power: 3,000 W

● HVDC: 240 V DC to 380 V DC, power consumption: 3,000 W

Airflow direction

Front-to-rear

Maximum Power Consumption

18,760 W

Environment and Reliability

MTBF

312,683 hours

Operating Temperature

0ºC to 40ºC (32ºF to 104ºF)

Storage Temperature

–40ºC to +70ºC (–40ºF to +158ºF)

Operating Humidity

10% RH to 90% RH (non-condensing)

Storage humidity

5% to 95% RH (non-condensing)

Altitude

● Operating altitude for long-term working conditions: up to 5000 m (16404.20 ft.). At 1800 m (5905.51 ft.), the maximum operating temperature is 40°C (104°F). The maximum operating temperature decreases by 1°C (1.8°F) per 200 m (656.16 ft.) increase in altitude.

● Operating altitude: up to 5,000 m (16404.20 ft.)

● Storage altitude: up to 5,000 m (16404.20 ft.)

Software Specifications

RG-N18010-XH

Traffic Analysis

sFlow

IPFIX

Layer 2 Features

Jumbo frame

IEEE 802.3ad (static link aggregation, LACP, cross-card link aggregation, cross-device link aggregation)

IEEE 802.1Q

STP, RSTP, MSTP

GVRP

QinQ

LLDP

Static MAC addresses, address filtering, and limit on the number of MAC addresses

IPv4 Features

Static routing, RIP, OSPF, IS-IS, and BGP4

VRRP

ECMP

Policy-based routing

Manual tunnel and GRE tunnel

IPv6 Features

Static routing, OSPFv3, BGP4+, IS-ISv6, and MLDv1/v2

VRRPv3

ECMP

Policy-based routing

Path MTU Discovery

Manual tunnel and GRE tunnel

Pingv6, telnetv6, FTPv6, TFTPv6, DNSv6, ICMPv6

Multicast

IGMP v1/v2/v3

IGMP snooping

IGMP proxy

PIM-DM, PIM-SM, PIM-SSM, and other multicast routing protocols

MLDv1, MLDv2

Multicast static routing

Fast leave

MPLS

MPLS L3VPN

MPLS LDP

#SR MPLS (Segment Routing)

#SR-TE

ACL

Standard, extended, and expert-level ACLs

Global ACLs

Ingress and egress ACLs

IPv6 ACLs

QoS

Mapping of IEEE 802.1p, DSCP, and ToS priorities
Priority marking/remarking
Multiple queue scheduling mechanisms, including SP(PQ), DRR, SP(PQ) + DRR, WFQ, SP(PQ) + WFR,
Congestion avoidance mechanisms such as RED and WRED

ACL

Ingress and egress rate limiting, CAR

#MPLS QoS

Data center features

#SRv6

VXLAN bridge

VXLAN gateway

BGP-EVPN VXLAN

VXLAN mapping

IPv6 VXLAN over IPv4

MLAG

SDN

OpenFlow 1.3.

Reliability

Independent switch fabric modules and independent supervisor modules to implement thorough separation of the forwarding plane from the control plane

1+1 redundancy for supervisor modules

N+1 redundancy for switch fabric modules

N+M redundancy for power modules and fans

Backplane-free design to avoid single point of failures

Hot swapping of components

Hot patch function and online installation of patches

BPDU Guard/Loop Guard/Root Guard

NSR

DLDP

FRR

GR for OSPF/IS-IS/BGP

BFD for VRRP/OSPF/BGP4/ISIS/ISISv6/static routing

Device virtualization

Virtual Switching Unit 3.0

Security

MACSec

Network Foundation Protection Policy (NFPP) and CPU protection policy (CPP) to prevent protocol packet attacks

Prevention against DDoS, ARP, and ICMP attacks

DAI, port security, IP source guard, and port protection

uRPF

RADIUS and TACACS user login authentication, password security, hierarchical user management, and password protection

Source IP address restriction

Function of not sending unknown multicast packets to the CPU

Suppression of unknown multicast, unknown broadcast, and unknown multicast packets

SSHv2, providing encrypted security channels for user login
Prevention against MAC address flapping

Plaintext and MD5 ciphertext authentication for OSPF, RIPv2, and BGP4 packets

Management

Console/AUX Modem/Telnet/SSH2.0 CLI configuration

FTP, TFTP, Xmodem, and SFTP SNMP V1/V2c/V3

NETCONF

RMON

NTP clock

Fault alarm and auto-recovery

System operation logging

Traffic analysis

Zero-touch provisioning (ZTP)

Reliable network service (RNS), which probes specific services provided by the peer device to monitor the service availability

Telemetry

Buffer status monitoring and traffic microburst identification

Port mirroring, traffic mirroring, and ERSPAN

Physical ports on all line cards support the routing mode and IP addresses can be configured independently.

Monitoring of fan modules and power modules
