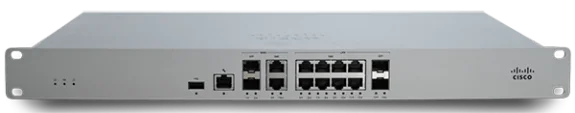

MX450-HW Cisco Meraki MX450

THÔNG SỐ KỸ THUẬT

MX450-HW Cisco Meraki MX450

Highlights

• WAN: two 10 GbE SFP+, one USB (cellular failover)
• LAN: eight GbE RJ45, eight GbE SFP, eight 10 GbE SFP+
• 6 Gbps firewall throughput
• 2 Gbps site-to-site VPN throughput
• Supports up to 10,000 users

Network and Security Services

• Stateful firewall, 1:1 NAT, DHCP, DMZ, static routing
• Identity-based policies
• Auto VPN self-configuring site-to-site VPN
• Client VPN (IPsec)
• User and device quarantine
• VLAN support and DHCP services

Advanced Security Services

• Content filtering (Webroot BrightCloud CIPA-compliant URL database)
• Web search filtering (including Google and Bing SafeSearch)
• YouTube for Schools
• Intrusion prevention (SourceFire Snort based)
• Cisco Advanced Malware Protection (AMP)
• Requires Advanced Security License

WAN Performance Management

• Web caching
• WAN link aggregation
• Application level (Layer 7) traffic analysis and shaping
• Automatic Layer 3 failover (including VPN connections)
• WAN uplink selection based on traffic type

Monitoring and Management

• Web based management and configuration
• Throughput, connectivity monitoring and alerts
• Network asset discovery and user identification
• Built-in network-wide reporting, monitoring and alerts
• Centralized policy management
• Real-time diagnostic and troubleshooting over the web
• Automatic firmware upgrades and security patches
• Searchable network-wide event logs

Interfaces

• 2 × 10GbE SFP+ (WAN)
• 8 × GbE (RJ45)
• 8 × GbE (SFP)
• 8 × 10GbE (SFP+)
• USB: 1 × USB 2.0 for 3G/4G failover

Performance

• Stateful firewall throughput: 6 Gbps
• VPN throughput: 2 Gbps
• Recommended for large campus / data centers (up to 10,000 users)

Power

• Dual 250W power supplies (included)

Environment

• Operating temperature: 32°F to 104°F (0°C to 40°C)
• Humidity: 5 to 95% non-condensing

Warranty

• Lifetime hardware warranty with advanced replacement included
