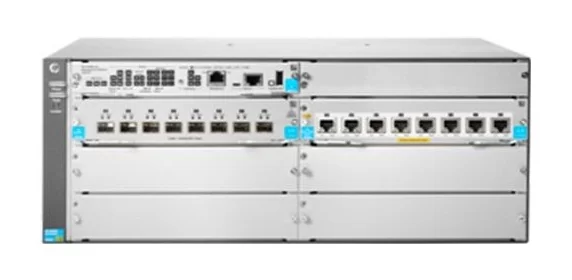

JL002A - Aruba 5406R

Mã sản phẩm: JL002A Tình trạng: Còn hàng Thương hiệu: HPE Aruba

Aruba 5406R v3 zl2 switch with 8 HPE Smart Rate multi-gigabit ports
(without power supplies), 8 open SFP+ slots, and 4 open module slots

Số lượng:

LIÊN HỆ TƯ VẤN

Mr. LIÊM

0981156699

Mr. ÁNH

0327226056

Ms.MỸ

0986671341

HỖ TRỢ KỸ THUẬT

Mr. KỲ

0383791490

Mr. Phan Anh

0862235603

Mr. Tuấn Anh

0972814658

Giá bán liên hệ

Chia sẻ:

CAM KẾT BÁN HÀNG

Sản Phẩm Chính Hãng 100% Đầy Đủ CO/CQ

Giá Cạnh Tranh Rẻ Nhất Thị Trường

Giao Hàng Trên Toàn Quốc

Hỗ Trợ Kỹ Thuật Chuyên Nghiệp, Nhiệt Tình

Ưu Đãi Lớn Cho Đại Lý Và Dự Án

Chăm Sóc Khách Hàng Trước, Trong và Sau Khi Mua Hàng Tận Tâm.

Mô tả sản phẩm

THÔNG SỐ KỸ THUẬT

JL002A - Aruba 5406R

Product Number	JL002A
Type	HPE 5406R 8-port 1/2.5/5/10GBASE-T PoE+/8-port SFP+ (No PSU) v3 zl2 Switch
Included accessories	1 HPE 5400R zl2 Management Module (J9827A) 1 HPE 5406R zl2 Switch Fan Tray (J9831A) 1 HPE 8-port 1G/10GbE SFP+ MACsec v3 zl2 Module (J9993A) 1 HPE 8-port 1/2.5/5/10GBASE-T PoE+ MACsec v3 zl2 Module (J9995A)
I/O ports and slots	8 RJ-45 HPE Smart Rate Multi-Gigabit ports 8 open 10GbE SFP+ transceiver slots 4 open module slots Supports a maximum of 144 autosensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HPE Smart Rate Multi-Gigabit or 12 40GbE ports, or a combination
Power supplies	2 power supply slots 1 minimum power supply required (ordered separately)
Fan Tray	Includes: 1 x J9831A 1 fan tray slot
Dimensions (W x D x H)	17.5(w) x 17.75(d) x 6.9(h) in. (44.45 x 45.09 x 17.53 cm) (4U height)
Weight	28.11 lb (12.75 kg)

XEM THÊM

TỔNG QUAN

Product Differentiator (long)Ultra-flexible 6-slot campus access solution "starter kit" with 8 HPE Smart Rate PoE+ ports and 8 10G SFP+ ports. Great for wireless aggregation as it has a total of 8x 10 Gig ports and 8x HPE Smart Rate Multi-Gig ports. This configuration has a 6 slot 5400R chassis, 1x J9993A 8 port 1G/10GbE SFP+ MACsec v3 module, 1x J9995A 8 port 1/2.5/5/10GBASE T PoE+ MACsec v3 module, 1x J9827A mgmt module, and 1x J9832A fan tray. Does not include PSUs these must be ordered separately.

Heat Dissipation2450 BTU/hr (2584.75 kJ/hr)

Input Voltage110 - 127 / 200 - 240 VAC, rated

External I/O Ports(8) RJ-45 HPE Smart Rate Multi-Gigabit ports (8) open 10GbE SFP+ transceiver slots (4) open module slots Supports a maximum of 144 autosensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HPE Smart Rate Multi-Gigabit or 12 40GbE ports, or a combination

Latency1000 Mb Latency: < 2.8 µs 10 Gbps Latency: < 1.8 µs 40 Gbps Latency: < 1.5 µs

Routing/switching Capacity960 Gbps

Switch Fabric Speed1015 Gbps

Throughputup to 571.4 Mpps

Memory and ProcessorFreescale P2020 dual core @ 1.2 GHz 16 MB flash 1 GB SD Card 4 GB DDR3 SODIMM

PoE Capability240W, depending on power supplies installed

Management FeaturesAruba AirWave Network Management Aruba Central IMC - Intelligent Management Center Command-line interface Web browser Configuration menu Out-of-band management (RJ-45 Ethernet) SNMP manager Out-of-band management (serial RS-232C or micro USB)

Warranty Standard StatementLimited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase. Software releases: for details on the software releases available with your product purchase refer to www.hpe.com/networking/warrantysummary.

Detailed Product DescriptionAruba 5406R v3 zl2 switch with 8 HPE Smart Rate multi-gigabit ports (without power supplies), 8 open SFP+ slots, and 4 open module slots

Weight (imperial)28.11 lb

Weight (metric)12.75 kg

Product Dimensions (imperial)17.5 x 17.75 x 6.9 in

Product Dimensions (metric)44.45 x 45.09 x 17.53 cm
