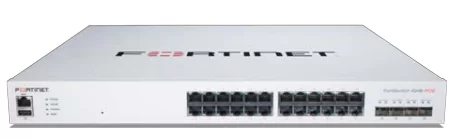

FS-424E-POE - Fortinet FortiSwitch 424E-POE

FortiSwitch 424E

FortiSwitch 424E-POE

FortiSwitch 424E-FPOE

FortiSwitch M426E-FPOE

Hardware Specifications

Total Network Interfaces

24x GE RJ45 and 4x10 GE SFP+ ports Note: SFP+ ports are compatlble with 1 GE SFP

24x GE RJ45 and 4x10 GE SFP+ ports Note: SFP+ ports are compatlble with 1 GE SFP

24x GE RJ45 and 4x10 GE SFP+ ports Note: SFP+ ports are compatlble with 1 GE SFP

16x GE RJ45, 8x 2.5 GE RJ45 ports, 2x 5 GE RJ45, and 4x 10 GE SFP+ ports Note: SFP+ ports are compatible with 1 GE SFP

Dedicated Management 10/100 Port

1

1

1

1

RJ-45 Serial Console Port

1

1

1

1

Form Factor

1 RU Rack Mount

1 RU Rack Mount

1 RU Rack Mount

1 RU Rack Mount

Power over Ethernet (PoE) Ports

-

24 (802.3af/at)

24 (802.3af/at)

24 (16x 802.3af/at, 8x 802.3af/at/UPOE)

PoE Power Budget

N/A

250 W

421 W

420 W

Mean Time Between Failures

> 10 years

> 10 years

> 10 years

> 10 years

System Specifications

Switching Capacity (Duplex)

128 Gbps

128 Gbps

128 Gbps

172 Gbps

Packets Per Second (Duplex)

204 Mpps

204 Mpps

204 Mpps

255 Mpps

MAC Address Storage

16 K

16 K

16 K

16 K

Network Latency

< 1µs

< 1µs

< 1µs

< 1µs

VLANs Supported

4 K

4 K

4 K

4 K

Link Aggregation Group Size

8

8

8

8

Total Link Aggregation Groups

Up to number of ports

Up to number of ports

Up to number of ports

Up to number of ports

Packet Buffers

2 MB

2 MB

2 MB

2 MB

DRAM

1 GB DDR4

1 GB DDR4

1 GB DDR4

1 GB DDR4

FLASH

256 MB

256 MB

256 MB

256 MB

Dimensions

Height x Depth x Width (inches)

1.75 x 10.23 x 17.3

1.75 x 16.14 x 17.3

1.75 x 16.14 x 17.3

1.73 x 16.14 x 17.3

Height x Depth x Width (mm)

44 x 260 x 440

44 x 410 x 440

44 x 410 x 440

44 x 410 x 440

Weight

6.83 lbs (3.1 kg)

11.57 lbs (5.25 kg)

12.72 lbs (5.77 kg)

13.00 lbs (5.9 kg)

Environment

Power Required

100–240V AC, 50/60 Hz

100–240V AC, 50/60 Hz

100–240V AC, 50/60 Hz

100–240V AC, 50/60 Hz

Power Supply

AC built in

AC built in

AC built in

AC built in

Redundant Power

Redundant AC

Redundant AC

Redundant AC

Redundant AC

Power Consumption (Average / Maximum)

22.3 W / 23.6 W

281.3 W / 283.5 W

431.2 W / 433.7 W

441 W / 442 W

Heat Dissipation

76.04 BTU/h

102.64 BTU/h

117.2 BTU/h

132.734 BTU/h

Operating Temperature

32–113°F (0–45°C)

32–113°F (0–45°C)

32–122°F (0–50°C)

32–122°F (0–50°C)

Storage Temperature

-4–158°F (-20–70°C)

-4–158°F (-20–70°C)

-4–158°F (-20–70°C)

-4–158°F (-20–70°C)

Humidity

5–95% non-condensing

5–95% non-condensing

5–95% non-condensing

5–95% non-condensing

Certification and Compliance

FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Warranty

Fortinet Warranty

Limited lifetime* warranty on all models
