FS-108F-POE -Fortinet FortiSwitch 108F-POE

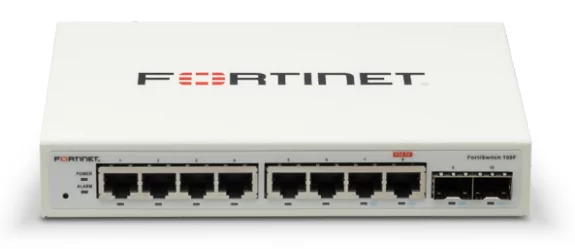

FORTISWITCH 108F

FORTISWITCH 108F-POE

FORTISWITCH 108F-FPOE

Hardware Specifications

Total Network Interfaces

7x GE RJ45, 1x GE/POE-PD RJ45, and 2x GE SFP

8x GE RJ45 and 2x GE SFP

8x GE RJ45 and 2x GE SFP

Dedicated Management 10/100 Port

0

0

0

RJ-45 Serial Console Port

1

1

1

Form Factor

Desktop

Deskop / 19” rack bracket

Deskop / 19” rack bracket

Power over Ethernet (PoE) Ports

0

8 (802.3af/at)

8 (802.3af/at)

PoE Power Budget

0

65 W

130 W

Mean Time Between Failures

> 10 years

> 10 years

> 10 years

System Specifications

Switching Capacity (Duplex)

20 Gbps

20 Gbps

20 Gbps

Packets Per Second (Duplex)

30 Mpps

30 Mpps

30 Mpps

MAC Address Storage

8 K

8 K

8 K

Network Latency

4 μs

4 μs

4 μs

VLANs Supported

4 K

4 K

4 K

Link Aggregation Group Size

8

8

8

<pTotal Link Aggregation Groups

</p

8

8

8

Packet Buffers

512 KB

512 KB

512 KB

DRAM

256 MB DDR3

256 MB DDR3

256 MB DDR3

FLASH

32 MB

32 MB

32 MB

<pACL

</p

768

768

768

Spanning Tree Instances

16

16

16

Dimensions

Height x Depth x Width (inches)

1.18 x 4.72 x 7.09

1.73 x 8.23 x 9.85

1.73 x 8.23 x 9.85

Height x Depth x Width (mm)

30 x 120 x 180

44 x 209 x 250

44 x 209 x 250

Weight

1.36 lbs (0.62 kg)

3.75 lbs (1.70 kg)

4.05 lbs (1.84 kg)

Environment

Power Required

100–240V AC, 50/60 Hz / PoE-PSE(af)

100–240V AC, 50/60 Hz

100–240V AC, 50/60 Hz

Power Supply

12V/1A DC power adapter included, PoE-PD Built in

AC built in

AC built in

Redundant Power

No

No

No

Power Consumption

6.2 W

74.4 W

139.2 W

<pHeat Dissipation

</p

21.142 BTU/h

34.12 BTU/h

34.56 BTU/h

Operating Temperature

32–113°F (0–45°C)

32–113°F (0–45°C)

32–113°F (0–45°C)

Storage Temperature

-49–158°F (-40–70°C)

-40–158°F (-40–70°C)

-40–158°F (-40–70°C)

Humidity

5–95% non-condensing

5–95% non-condensing

5–95% non-condensing

Air-Flow Direction

side-to-back

side-to-back

side-to-back

Certification and Compliance

FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Warranty

Fortinet Warranty

Limited lifetime* warranty on all models
