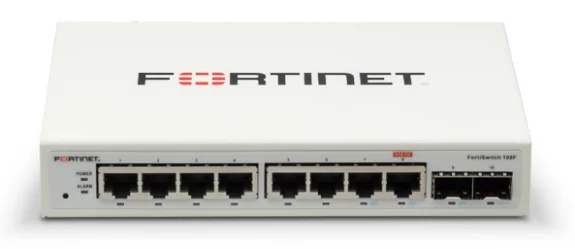

FS-108F - Fortinet FortiSwitch 108F

Mã sản phẩm: FS-108F Tình trạng: Còn hàng Thương hiệu: Fortinet

L2 Switch - 8 x GE RJ45 ports, 2 x GE SFP, Fanless, 12V/3A power adapter of
input voltage 100 - 240VAC and PSE dual powered L2+ management switch,
FortiGate Switch controller compatible.

Số lượng:

LIÊN HỆ TƯ VẤN

Mr. LIÊM

0981156699

Mr. ÁNH

0327226056

Ms.MỸ

0986671341

HỖ TRỢ KỸ THUẬT

Mr. KỲ

0383791490

Mr. Phan Anh

0862235603

Mr. Tuấn Anh

0972814658

Giá bán liên hệ

Chia sẻ:

CAM KẾT BÁN HÀNG

Sản Phẩm Chính Hãng 100% Đầy Đủ CO/CQ

Giá Cạnh Tranh Rẻ Nhất Thị Trường

Giao Hàng Trên Toàn Quốc

Hỗ Trợ Kỹ Thuật Chuyên Nghiệp, Nhiệt Tình

Ưu Đãi Lớn Cho Đại Lý Và Dự Án

Chăm Sóc Khách Hàng Trước, Trong và Sau Khi Mua Hàng Tận Tâm.

Mô tả sản phẩm

THÔNG SỐ KỸ THUẬT

FS-108F - Fortinet FortiSwitch 108F

L2 Switch - 8 x GE RJ45 ports, 2 x GE SFP, Fanless, 12V/3A power adapter of input voltage 100 - 240VAC and PSE dual powered L2+ management switch, FortiGate Switch controller compatible.

	FORTISWITCH 108F	FORTISWITCH 108F-POE	FORTISWITCH 108F-FPOE
Hardware Specifications
Total Network Interfaces	7x GE RJ45, 1x GE/POE-PD RJ45, and 2x GE SFP	8x GE RJ45 and 2x GE SFP	8x GE RJ45 and 2x GE SFP
Dedicated Management 10/100 Port	0	0	0
RJ-45 Serial Console Port	1	1	1
Form Factor	Desktop	Deskop / 19” rack bracket	Deskop / 19” rack bracket
Power over Ethernet (PoE) Ports	0	8 (802.3af/at)	8 (802.3af/at)
PoE Power Budget	0	65 W	130 W
Mean Time Between Failures	> 10 years	> 10 years	> 10 years
System Specifications
Switching Capacity (Duplex)	20 Gbps	20 Gbps	20 Gbps
Packets Per Second (Duplex)	30 Mpps	30 Mpps	30 Mpps
MAC Address Storage	8 K	8 K	8 K
Network Latency	4 μs	4 μs	4 μs
VLANs Supported	4 K	4 K	4 K
Link Aggregation Group Size	8	8	8
<pTotal Link Aggregation Groups </p	8	8	8
Packet Buffers	512 KB	512 KB	512 KB
DRAM	256 MB DDR3	256 MB DDR3	256 MB DDR3
FLASH	32 MB	32 MB	32 MB
<pACL </p	768	768	768
Spanning Tree Instances	16	16	16
Dimensions
Height x Depth x Width (inches)	1.18 x 4.72 x 7.09	1.73 x 8.23 x 9.85	1.73 x 8.23 x 9.85
Height x Depth x Width (mm)	30 x 120 x 180	44 x 209 x 250	44 x 209 x 250
Weight	1.36 lbs (0.62 kg)	3.75 lbs (1.70 kg)	4.05 lbs (1.84 kg)
Environment
Power Required	100–240V AC, 50/60 Hz / PoE-PSE(af)	100–240V AC, 50/60 Hz	100–240V AC, 50/60 Hz
Power Supply	12V/1A DC power adapter included, PoE-PD Built in	AC built in	AC built in
Redundant Power	No	No	No
Power Consumption	6.2 W	74.4 W	139.2 W
<pHeat Dissipation </p	21.142 BTU/h	34.12 BTU/h	34.56 BTU/h
Operating Temperature	32–113°F (0–45°C)	32–113°F (0–45°C)	32–113°F (0–45°C)
Storage Temperature	-49–158°F (-40–70°C)	-40–158°F (-40–70°C)	-40–158°F (-40–70°C)
Humidity	5–95% non-condensing	5–95% non-condensing	5–95% non-condensing
Air-Flow Direction	side-to-back	side-to-back	side-to-back
Certification and Compliance
FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2
Warranty
Fortinet Warranty	Limited lifetime* warranty on all models
