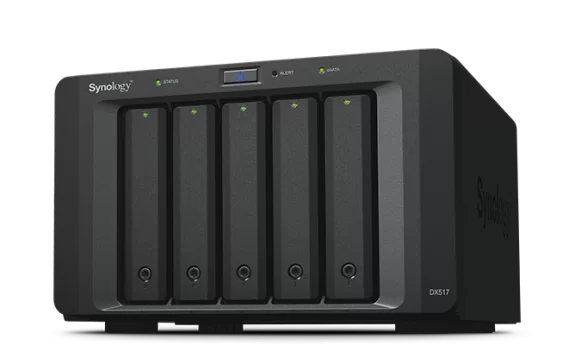

DX517 - Synology Expansion Unit DX517

THÔNG SỐ KỸ THUẬT Applied Models Supports creating volumes across different units · 21 series:DS1821+, DS1621xs+, DS1621+, DVA3221 · 20 series:DS1520+, DS920+, DS720+ · 19 series:DS1819+, DS1019+, DVA3219 · 18 series:DS1618+, DS918+, DS718+, NVR1218 · 17 series:DS1817+, DS1817, DS1517+, DS1517 · 16 series:DS916+, DS716+, DS716+II · 15 series:DS1815+, DS1515+, DS1515 Supports creating volumes on a single unit only · 18 series:DS218+ · 16 series:DS216+, DS216+II, NVR216 · 15 series:DS415+ Notes · For more information on the compatibility of each expansion unit, please refer to this article. · Please upgrade to DSM 6.2.1-23824-5 or later version before using it with 15 and 16 series models (excluding DS1515, DS716+, and DS716+II). · To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit. Storage Drive Bays 5 Compatible Drive Type* (See all supported drives) · 3.5" SATA HDD · 2.5" SATA HDD · 2.5" SATA SSD Maximum Internal Raw Capacity 80 TB (16 TB drive x 5) (Capacity may vary by RAID types) Hot Swappable Drive RAID Management through Synology DSM Notes It is strongly recommended that you only install drives listed on your device's compatibility list. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components. External Ports eSATA Port 1 Appearance Size (Height x Width x Depth) 157 mm x 248 mm x 233 mm Weight 3.91 kg Power Power Recovery Synchronized with the Synology DiskStation Power Supply Unit / Adapter 200 W AC Input Power Voltage 100 V to 240 V AC Power Frequency 50/60 Hz, Single Phase Power Consumption* 29.9 W (Access) 2.4 W (HDD Hibernation) British Thermal Unit 102.02 BTU/hr (Access) 8.19 BTU/hr (HDD Hibernation) Notes Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). Temperature Operating Temperature 5°C to 40°C (40°F to 104°F) Storage Temperature -10°C to 70°C (15°F to 155°F) Relative Humidity 5% to 95% RH Others System Fan 80 mm x 80 mm x 2 pcs Easy Replacement System Fan Noise Level* 21.5 dB(A) Notes Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% Certification · FCC · CE · BSMI Warranty 3-year hardware warranty, extendable to 5-year coverage - EW201 Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) Environment & Packaging Environment RoHS Compliant Packaging Content · Main Unit X 1 · Accessory Pack X 1 · AC Power Cord X 1 · Expansion Cable: eSATA X 1 · Quick Installation Guide X 1 Optional Accessories · 3.5" SATA HDD: HAT5300 · 2.5" SATA SSD: SAT5210
