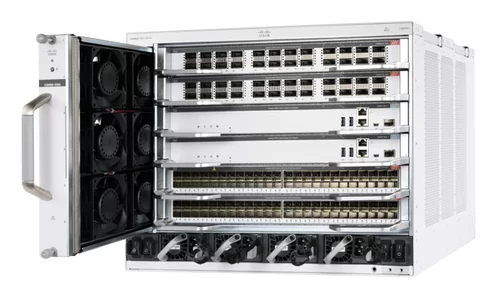

C9606R-48Y24C-BN-A - Cisco Switch Catalyst 9600

Product Code

C9606R-48Y24C-BN-A

Product Description

Catalyst 9600 Series 6 slot, 1xSup, 2xLC , DNA-A LIC

Dimensions (H x W x D)

35.43 x 44.2 x 40.9 cm

13.95 x 17.4 x 16.1 in.

Rack Units (RU)

8

Total number of slots

6

Line-card slots

4

Supervisor engine slots

2

Dedicated supervisor engine slot numbers

3 and 4

Supervisor engine redundancy

Yes

Supervisor engines supported

C9600-SUP-1

Maximum bandwidth scalability per line-card slot

6.4 Tbps^**

2.4 Tbps^***

Number of power supply bays

4

Minimum number of power supplies

2^*

Power supplies supported

2000W AC, 2000W DC

Number of fan-tray bays

1

*Fully loaded 9606R chassis, Minimum 3 power supplies required if input voltage is 110V

**Hardware ready

***With C9600-SUP-1

Input voltage

AC: 90V to 264V, 47 to 63 Hz AC

DC: -40V to -72V

Operating temperature

-5° to 45° C (23° to 113° F) up to 6000 feet

-5° to 40° C (23° to 104° F) up to 10,000 feet

Storage temperature

-40° to 75° C (40° to 167° F)

Relative humidity, operating and nonoperating, noncondensing

10% to 95%, noncondensing

Altitude

-60 to 3000 m (-197 to 9843 feet)

Mean Time Between Failures (MTBF) (hours)

C9606R chassis: 4,113,900

C9606 fan tray: 452,570

Weight of fan tray

3.56 kg(7.85 lb)

Weight of individual PSUs

AC PSU: 1.2 kg (2.65 lb)

DC PSU: 1.28 kg (2.82 lb)

Safety certifications

C9606R

•IEC 60950-1 plus Am1, Am2, Am9, Am10, Am11, Am12 and all deviations and differences

•AS/NZS 60950.1.2011

•CAN/CSA-C22.2 No. 60950-1-07

•GB 4943-95

•EN 60950-1; 2006 plus Am1, Am 2, Am9, Am10, Am11, Am12 and all deviations and differences

•NOM-019-SCFI-1998

•UL 60950-1, Second Edition

EMI and EMC compliance

47 CFR Part 15 Class A

CNS13438: 2006 Class A

EN 300 386 V1.6.1

EN61000-3-2: 2014

EN61000-3-3: 2013

ICES-003 Issue 6: 2016 Class A

KN 32: 2015 Class A

TCVN 7189: 2009 Class A

EN 55032:2012/ AC:2013 Class A

EN 55032:2015 Class A

CISPR 32 Edition 2 Class A

V-2/2015.04 Class A

V-3/2015.04 Class A

CISPR24: 2010 + A1: 2015

EN 300 386 V1.6.1

EN55024: 2010 + A1: 2015

KN35: 2015

TCVN 7317: 2003

Product number

Description

C9600-SUP-1

Cisco Catalyst 9600 Series Supervisor 1 Module

C9600-SUP-1/2

Cisco Catalyst 9600 Series Redundant Supervisor 1 Module

C9600-LC-48YL

Cisco Catalyst 9600 Series 48-Port 25GE/10GE/1GE

C9600-LC-24C

Cisco Catalyst 9600 Series 24-Port 40GE/12-Port 100GE

C9606-FAN

Cisco Catalyst 9600 Series C9606 Chassis Fan Tray

C9K-F2-SSD-240GB

Cisco Catalyst 9600 Series 240GB SSD Storage

C9K-F2-SSD-480GB

Cisco Catalyst 9600 Series 480GB SSD Storage

C9K-F2-SSD-960GB

Cisco Catalyst 9600 Series 960GB SSD Storage

Cisco DNA term licenses

Description

C9600-DNA-A

C9600 Cisco DNA Advantage Term License

C9600-DNA-A-3Y

C9600 Cisco DNA Advantage 3 Year License

C9600-DNA-A-5Y

C9600 Cisco DNA Advantage 5 Year License

C9600-DNA-A-7Y

C9600 Cisco DNA Advantage 7 Year License

C9600-DNA-P

C9600 Cisco DNA Premier License

C9600-DNA-P-3Y

C9600 Cisco DNA Premier 3 Year Term License

C9600-DNA-P-5Y

C9600 Cisco DNA Premier 5 Year Term License

C9600-DNA-P-7Y

C9600 Cisco DNA Premier 7 Year Term License

CAT-DNA-P-ADD

Cisco DNA Premier Catalyst Add-on

CAT-DNA-P-ADD-3Y

Cisco DNA Premier Catalyst Add-on, 3 Year Term License

CAT-DNA-P-ADD-5Y

Cisco DNA Premier Catalyst Add-on, 5 Year Term License

CAT-DNA-P-ADD-7Y

Cisco DNA Premier Catalyst Add-on, 7 Year Term License

Power supplies

Description

C9600-PWR-2KWAC

Cisco Catalyst 9600 Series 2000W AC Power Supply

C9600-PWR-2KWDC

Cisco Catalyst 9600 Series 2000W DC Power Supply

Spare accessories and kits

Description

C9606-SLOT-BLANK

Cisco Catalyst 9600 Series Blank for Chassis Module Slot

C9606-PWR-BLANK

Cisco Catalyst 9600 Series Blank for Chassis Power Supply Slot

CAB-CONSOLE-USB

Console Cable 6ft with USB Type A and mini-B

CAB-CONSOLE-RJ45

Console Cable 6ft with RJ45 and DB9F

C9606-RACK-KIT=

Cisco Catalyst 9600 Series 6 slot chassis Rack Mount

C9606-ACC-KIT=

Cisco Catalyst 9600 Series 6 slot chassis Accessory Kit

C9606-SHELF-KIT=

Cisco Catalyst 9600 Series 6 slot chassis Shelf Install Kit

C9606-FB-23-KIT=

Cisco Catalyst 9600 Series 6 slot chassis Front to Back Kit
