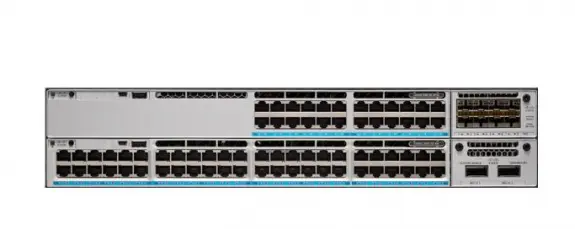

C9300L-48PF-4X-10E - Cisco Catalyst 9300 Switches

Mã sản phẩm: C9300L-48PF-4X-10E Tình trạng: Còn hàng Thương hiệu: Cisco

Catalyst 9300L 48p Full PoE, Network Ess,4x10G
Uplink,10y.

Số lượng:

LIÊN HỆ TƯ VẤN

Mr. LIÊM

0981156699

Mr. ÁNH

0327226056

Ms.MỸ

0986671341

HỖ TRỢ KỸ THUẬT

Mr. KỲ

0383791490

Mr. Phan Anh

0862235603

Mr. Tuấn Anh

0972814658

Giá bán liên hệ

Chia sẻ:

CAM KẾT BÁN HÀNG

Sản Phẩm Chính Hãng 100% Đầy Đủ CO/CQ

Giá Cạnh Tranh Rẻ Nhất Thị Trường

Giao Hàng Trên Toàn Quốc

Hỗ Trợ Kỹ Thuật Chuyên Nghiệp, Nhiệt Tình

Ưu Đãi Lớn Cho Đại Lý Và Dự Án

Chăm Sóc Khách Hàng Trước, Trong và Sau Khi Mua Hàng Tận Tâm.

Mô tả sản phẩm

THÔNG SỐ KỸ THUẬT

Specifications

General
Device Type	Switch - 48 ports - L3 - managed - stackable
Bundled Services	10 years Network Essentials
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)	PoE+
PoE Budget	890 W
Performance	Switching capacity with stacking: 496 Gbps ¦ Switching capacity: 176 Gbps ¦ Forwarding rate: 130.95 Mpps ¦ Forwarding rate with stacking: 369.05 Mpps
Capacity	IPv4 routes: 32000 ¦ IPv6 routes: 16000 ¦ Multicast scale: 8000 ¦ QoS scale entries: 5120 ¦ ACL scale entries: 5120 ¦ Routed ports: 416 ¦ VLANs supported: 4094 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MPLS, MSTP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm	128-bit AES, 256-bit AES
Features	Non-Stop Forwarding (NSF), Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Virtual Routing and Forwarding (VRF), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Location ID Separation Protocol (LISP), Blue Beacon LED, Zero-touch provisioning (ZTP), CoAP support, secure boot, Switched Port Analyzer (SPAN), Security Group Tag (SGT) caching, Protocol Independent Multicast (PIM), First Hop Security (FHS), Audio Video Bridging (AVB), PVLAN support, Graceful Insertion and Removal (GIR) mode, Committed Information Rate (CIR), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, Wi-Fi CERTIFIED 6
RAM	8 GB
Flash Memory	16 GB
Status Indicators	Status

Expansion / Connectivity
Interfaces	48 x 1000Base-T RJ-45 PoE+ ¦ 4 x 10GBase-X SFP+ uplink ¦ 1 x management (LAN) RJ-45 ¦ 1 x console ¦ 1 x USB 2.0

Power
Power Device	Internal power supply - hot-plug
Installed Qty	1 (installed) / 2 (max)
Power Redundancy	Optional
Power Provided	1100 Watt
Voltage Required	AC 100-240 V (50 - 60 Hz)

Miscellaneous
MTBF	298,880 hours
Compliant Standards	CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CISPR 25, RoHS, CNS 13438, EN 300 386 V1.6.1, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, IEC 61000-6-1, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, TCVN 7189 Class A, V-3 Class A, TCVN 7317, EN 55035, QCVN, V-2/2015.04, V-3/2015.04

Miscellaneous

MTBF

298,880 hours

Compliant Standards

CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CISPR 25, RoHS, CNS 13438, EN 300 386 V1.6.1, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, IEC 61000-6-1, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, TCVN 7189 Class A, V-3 Class A, TCVN 7317, EN 55035, QCVN, V-2/2015.04, V-3/2015.04

Dimensions & Weight
Width	17.5 in
Depth	1.7 in
Height	19.2 in
Weight	15.5 lbs

Manufacturer Warranty
Service & Support	Limited warranty - advance parts replacement - lifetime - response time: next business day

Environmental Parameters
Min Operating Temperature	23 °F
Max Operating Temperature	113 °F
Humidity Range Operating	5 - 90% (non-condensing)
Min Storage Temperature	-40 °F
Max Storage Temperature	158 °F
Humidity Range Storage	5 - 90% (non-condensing)
