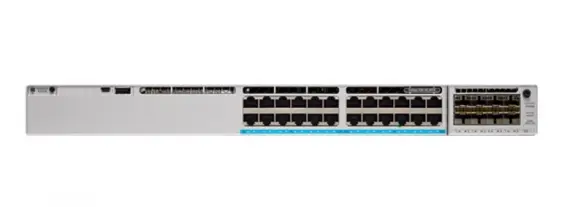

C9300L-24UXG2Q-10E - Cisco Catalyst 9300 Switches

Product Description

Cisco Catalyst 9300L - Network Essentials - switch - 24 ports - managed - rack-mountable

Device Type

Switch - 24 ports - L3 - managed - stackable

Enclosure Type

Rack-mountable

Bundled Services

10 years Network Essentials

Subtype

Gigabit Ethernet

Ports

16 x 10/100/1000 (UPOE) + 2 x 40Gb Ethernet + 8 x 1/2.5/5/10GBase-T

Power Over Ethernet (PoE)

UPOE

Performance

Switching capacity: 352 Gbps
Switching capacity with stacking: 672 Gbps
Forwarding rate: 261.9 Mpps
Forwarding rate with stacking: 500 Mpps

Capacity

IPv4 routes: 32000
IPv6 routes: 16000
Multicast scale: 8000
QoS scale entries: 5120
ACL scale entries: 5120
VLANs supported: 4094
Switched virtual interfaces (SVIs): 1000

MAC Address Table Size

32000 entries

Jumbo Frame Support

9198 bytes

Features

Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Energy Efficient Ethernet, Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Blue Beacon LED, Zero-touch provisioning (ZTP), secure boot, Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 1588v2, IEEE 802.1BA, IEEE 802.3bt, Wi-Fi CERTIFIED 6

Power

AC 100-240 V (50 - 60 Hz)

Power Redundancy

Optional

Dimensions (WxDxH)

17.5 in x 1.7 in x 19.2 in

Manufacturer Warranty

Limited lifetime warranty

General

Device Type

Switch - 24 ports - L3 - managed - stackable

Bundled Services

10 years Network Essentials

Enclosure Type

Rack-mountable

Subtype

Gigabit Ethernet

Ports

16 x 10/100/1000 (UPOE) + 2 x 40Gb Ethernet + 8 x 1/2.5/5/10GBase-T

Power Over Ethernet (PoE)

UPOE

PoE Budget

722 W

Performance

Switching capacity: 352 Gbps
Switching capacity with stacking: 672 Gbps
Forwarding rate: 261.9 Mpps
Forwarding rate with stacking: 500 Mpps

Capacity

IPv4 routes: 32000
IPv6 routes: 16000
Multicast scale: 8000
QoS scale entries: 5120
ACL scale entries: 5120
VLANs supported: 4094
Switched virtual interfaces (SVIs): 1000

MAC Address Table Size

32000 entries

Jumbo Frame Support

9198 bytes

Routing Protocol

OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG

Encryption Algorithm

128-bit AES, 256-bit AES

Features

Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Energy Efficient Ethernet, Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Blue Beacon LED, Zero-touch provisioning (ZTP), secure boot, Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 1588v2, IEEE 802.1BA, IEEE 802.3bt, Wi-Fi CERTIFIED 6

RAM

8 GB

Flash Memory

16 GB

Sta tus Indicators

Status

Product Code

C9300L-24UXG2Q-10E

Device Type

Switch - 24 ports - L3 - managed - stackable

Ports

16 x 10/100/1000 (UPOE) + 2 x 40Gb Ethernet + 8 x 1/2.5/5/10GBase-T

Power Over Ethernet (PoE)

UPOE

PoE Budget

722 W

Performance

Switching capacity: 352 Gbps
Switching capacity with stacking: 672 Gbps
Forwarding rate: 261.9 Mpps
Forwarding rate with stacking: 500 Mpps

Power

AC 100-240 V (50 - 60 Hz)

Dimensions (WxDxH)

17.5 in x 1.7 in x 19.2 in
