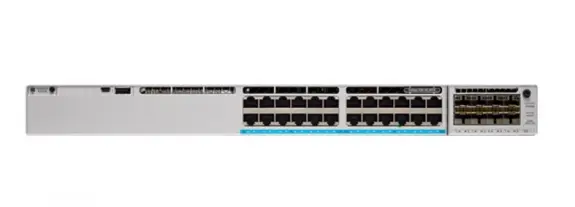

C9300L-24UXG2Q-10A - Cisco Catalyst 9300 Switches

Mã sản phẩm: C9300L-24UXG2Q-10A Tình trạng: Còn hàng Thương hiệu: Cisco

C9300L 24p PoE+ 8xmGig, Netw Adv, 2x40G Uplink.

Số lượng:

LIÊN HỆ TƯ VẤN

Mr. LIÊM

0981156699

Mr. ÁNH

0327226056

Ms.MỸ

0986671341

HỖ TRỢ KỸ THUẬT

Mr. KỲ

0383791490

Mr. Phan Anh

0862235603

Mr. Tuấn Anh

0972814658

Giá bán liên hệ

Chia sẻ:

CAM KẾT BÁN HÀNG

Sản Phẩm Chính Hãng 100% Đầy Đủ CO/CQ

Giá Cạnh Tranh Rẻ Nhất Thị Trường

Giao Hàng Trên Toàn Quốc

Hỗ Trợ Kỹ Thuật Chuyên Nghiệp, Nhiệt Tình

Ưu Đãi Lớn Cho Đại Lý Và Dự Án

Chăm Sóc Khách Hàng Trước, Trong và Sau Khi Mua Hàng Tận Tâm.

Mô tả sản phẩm

THÔNG SỐ KỸ THUẬT

Specifications

General
Device Type	Switch - 24 ports - L3 - managed - stackable
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	16 x 10/100/1000 (UPOE) + 2 x 40Gb Ethernet + 8 x 1/2.5/5/10GBase-T
Power Over Ethernet (PoE)	UPOE
PoE Budget	722 W
Performance	Switching capacity: 352 Gbps ¦ Switching capacity with stacking: 672 Gbps ¦ Forwarding rate: 261.9 Mpps ¦ Forwarding rate with stacking: 500 Mpps
Capacity	IPv4 routes: 32000 ¦ IPv6 routes: 16000 ¦ Multicast scale: 8000 ¦ QoS scale entries: 5120 ¦ ACL scale entries: 5120 ¦ VLANs supported: 4094 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG
Encryption Algorithm	128-bit AES, 256-bit AES
Features	Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Energy Efficient Ethernet, Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Blue Beacon LED, Zero-touch provisioning (ZTP), secure boot, Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 1588v2, IEEE 802.1BA, IEEE 802.3bt, Wi-Fi CERTIFIED 6
RAM	8 GB
Flash Memory	16 GB
Status Indicators	Status

Expansion / Connectivity
Interfaces	16 x 1000Base-T RJ-45 60 W ¦ 2 x 40Gbit LAN uplink ¦ 1 x network stack device ¦ 1 x management (LAN) RJ-45 ¦ 1 x console ¦ 1 x USB 2.0 ¦ 8 x 1/2.5/5/10GBase-T RJ-45

Power
Power Device	Internal power supply - hot-plug
Installed Qty	2 (max)
Power Redundancy	Optional
Power Provided	1100 Watt
Voltage Required	AC 100-240 V (50/60 Hz)

Miscellaneous
MTBF	291,670 hours
Compliant Standards	CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35

Miscellaneous

MTBF

291,670 hours

Compliant Standards

CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35

Software / System Requirements
Software Included	Cisco Digital Network Architecture Advantage (10 years)
OS Required	Cisco IOS Universal 16.12

Dimensions & Weight
Width	17.5 in
Depth	1.7 in
Height	19.2 in
Weight	16.01 lbs

Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days

Environmental Parameters
Min Operating Temperature	23 °F
Max Operating Temperature	113 °F
Humidity Range Operating	5 - 90% (non-condensing)
Min Storage Temperature	-40 °F
Max Storage Temperature	158 °F
Humidity Range Storage	5 - 90% (non-condensing)
