Bộ điều khiển truy cập không dây hiệu suất cao 10 Gbps RG-WS6012-L

System specifications

RG-WS6012-L

Memory

4 GB

Flash memory

16 MB

Dimensions and Weight

RG-WS6012-L

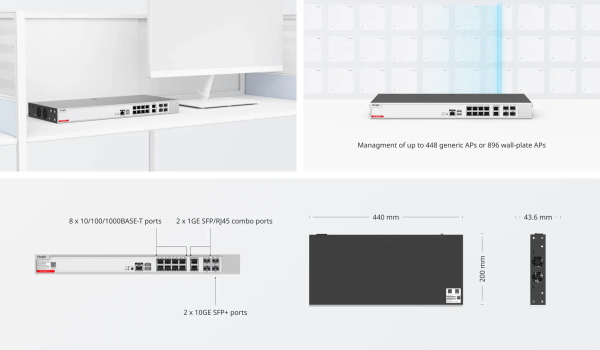

Unit dimensions (W x D x H)

440 mm x 200 mm x 43.6 mm (17.32 in. x 7.87 in. x 1.72 in., without rack-mount brackets)

486.2 mm x 205 mm x 43.6 mm (19.14 in. x 8.07 in. x 1.72 in., including rack-mount brackets)

Shipping dimensions (W x D x H)

550 mm x 460 mm x 368 mm (21.65 in. x 18.11 in. x 14.49 in.)

Rack size

1 RU

Unit weight

2.7 kg (5.95 lbs)

Shipping weight

3.5 kg (7.72 lbs)

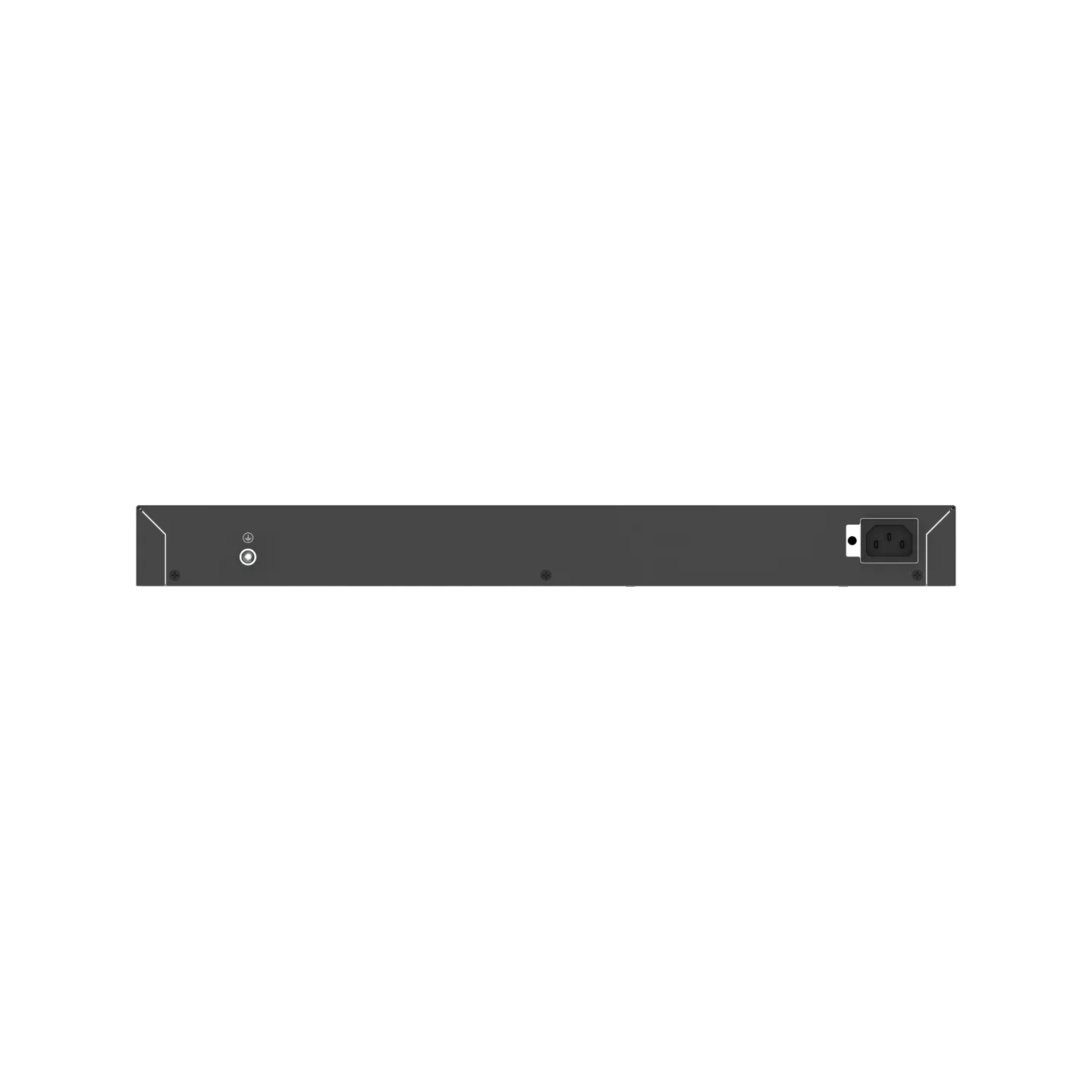

Mounting

Rack-mount

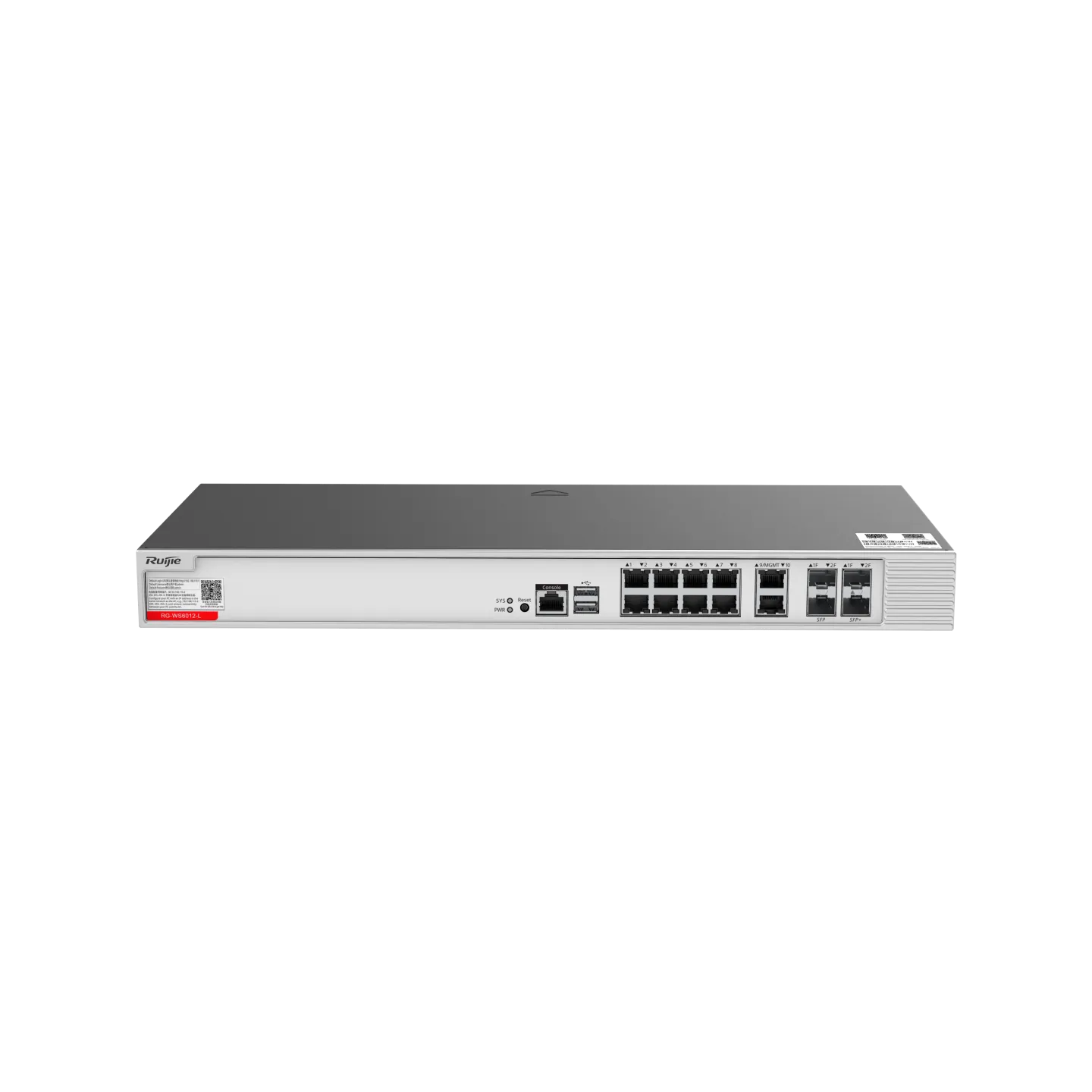

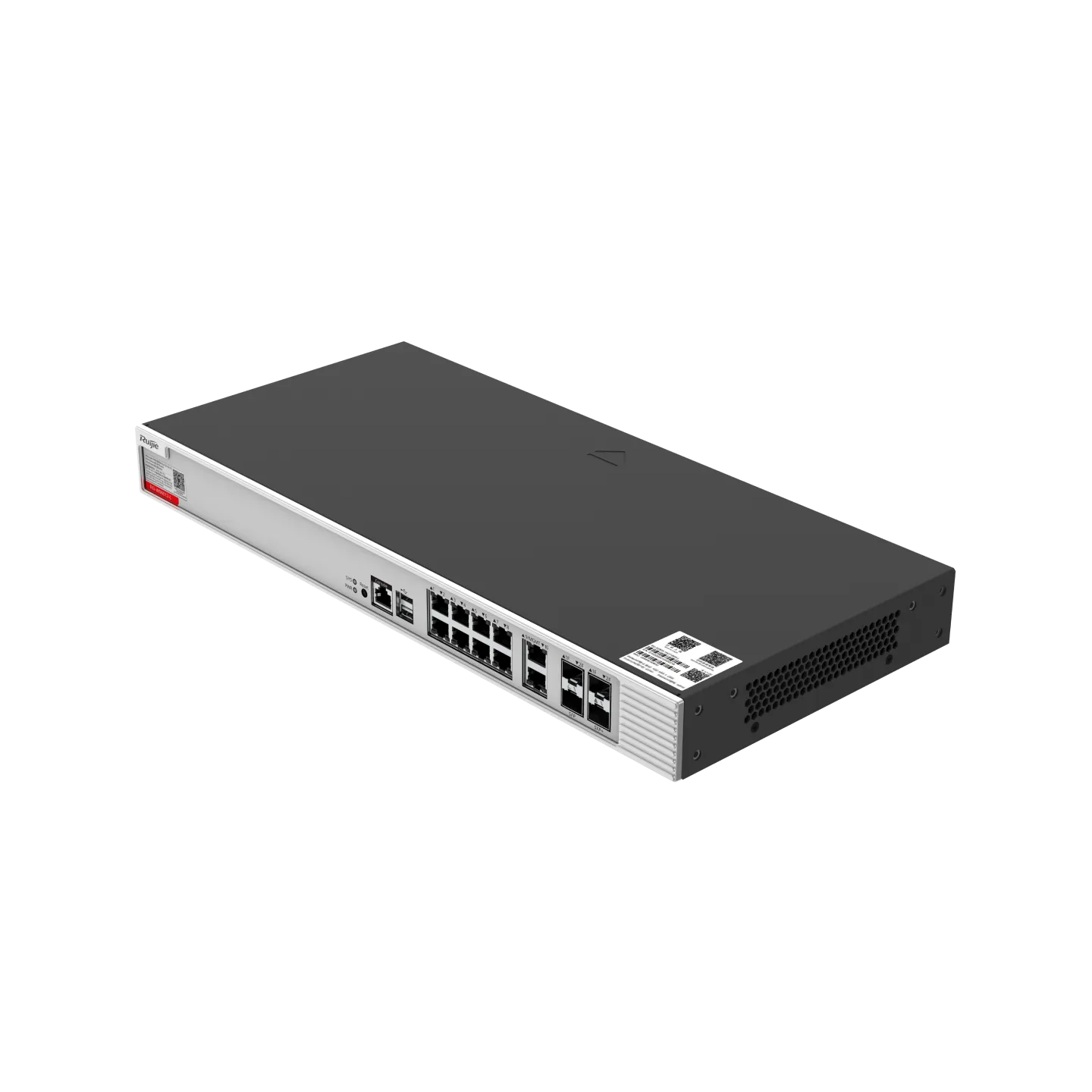

Port Specifications

RG-WS6012-L

Fixed service port

8 x 10/100/1000BASE-T ports

2 x 1GE SFP/RJ45 combo ports

● RJ45 ports support 10/100/1000BASE-T.

● Port 9/MGMT can also be used as a management port.

2 x 10GE SFP+ ports

Fixed management port

1 x RJ45 console port

2 x USB 3.0 ports, compatibility with USB 2.0

Status LED

1 x system status LED

1 x power status LED

8 x 10/100/1000BASE-T port LEDs

2 x 1GE SFP/RJ45 combo port LEDs

2 x 10GE SFP+ port LEDs

Button

1 x Reset button

● Press the button for shorter than 3 seconds. Then the device restarts.

● Press the button for longer than 3 seconds. Then the device restores to factory settings.

Power Supply and Consumption

RG-WS6012-L

Maximum power consumption

30 W

Input power supply

1 x 40 W built-in power module

Input voltage

100 V AC to 240 V AC, 50 Hz to 60 Hz

Input current

0.25 A (maximum RMS current)

Output voltage

12 V/3.33 A

Environment and Reliability

RG-WS6012-L

Temperature

Operating temperature: 0°C to 45°C (32°F to 113°F)

Storage temperature: –40°C to +70°C (–40°F to +158°F)

Note: At an altitude in the range of 1,800–4,000 m (5,905.51–13,123.36 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F).

Altitude

Operating altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.)

Storage altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.)

Humidity

Operating humidity: 10% RH to 90% RH (non-condensing)

Storage humidity: 5% RH to 95% RH (non-condensing)

Acoustic noise

< 78 dB

Mean Time Between Failure (MTBF)

200,000 hours (22 years) at the operating temperature of 25°C (77°F)

Performance and Capacity

RG-WS6012-L

WLAN

Default number of manageable APs

32

Note: The default number of APs that can be managed by the RG-WS6012-L is subject to the AP model. See the Ordering Information for details.

Maximum number of configurable APs

2,048

Maximum number of manageable APs

896

Note: The maximum number of APs that can be managed by the RG-WS6012-L is subject to the AP model. See the Ordering Information for details.

Maximum number of manageable STAs

4,480

Note: The maximum number of STAs that can be managed by the RG-WS6012-L is subject to the network environment. Contact technical support team for details.

WLAN service

Maximum number of WLAN IDs: 2,048

Maximum number of associated STAs per WLAN: 4,480

Intra-AC roaming handoff time

< 50 ms

Maximum number of virtualized ACs

4

Number of concurrent CAPWAP data channels

896

Routing and Switching

Forwarding capacity

10 Gbps (subject to the wireless network environment)

Number of MAC address entries

32,768

Number of VLANs

4,096

Number of ARP entries

32,768

DHCP address pools

Number of IPv4 address pools: 2,000

Number of IPv4 addresses: 24,576

Number of IPv6 address pools: 256

Number of IPv6 addresses: 2,048

Number of routing entries

IPv4 routing entries: 8,192

IPv6 routing entries: 10,000

Security and Authentication

Maximum number of STAs supported by the built-in Portal server

1,500

Number of ACL entries

65,536

Applicable Software Version

RG-WS6012-L

Applicable software version

AC_RGOS 11.9(6)W6B1 or later

WLAN

RG-WS6012-L

IEEE 802.11 protocols

802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11v, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac, and 802.11ax

CAPWAP

Layer 2 and Layer 3 topology supported between an AP and an AC

An AP can automatically discover the accessible AC.

An AP can be automatically upgraded through the AC.

An AP can automatically download the configuration file from the AC.

CAPWAP through NAT

Roaming

Intra-AC Layer 2 or Layer 3 roaming

Inter-AC Layer 2 or Layer 3 roaming

Intra-AC Layer 2 or Layer 3 roaming in local forwarding mode

Inter-AC Layer 2 or Layer 3 roaming in local forwarding mode

Forwarding mode

Centralized forwarding

Local forwarding

Service-based flexible forwarding

Wireless QoS

AP/WLAN/STA-based bandwidth limiting

(STA-based rate limit range: 8–261,120 in the unit of 8 kbps. For example, if you set the value to 8, the rate limit is 8 x 8 kbps = 64 kbps.)

Static and intelligent rate limiting based on STA quantity

Fair scheduling

User isolation

AC-based user isolation

AP-based user isolation

WLAN-based user isolation

Reliability

AC virtualization

AC failover

Multi-AC hot standby (1+1 A/A and A/S hot standby, and N+1 hot standby)

Multi-AC cluster (N-to-N)

Remote intelligent perception technology (RIPT)

Non-stop service during upgrade

STA management

Access control based on the number of STAs associated with the AP

Access control based on the number of STAs associated with the SSID

Balanced access control based on the number of STAs associated with the AP

Balanced access control based on the AP traffic

Band steering

Configuration of the RSSI threshold in dBm (range: 0–100)

Configuration of the STA idle timeout period in seconds (range: 60–86,400)

WLAN optimization

Adjustment of the transmit power for beacon or probe response frames

RF management

Country or region code setting

Manual setting of the transmit power

Automatic setting of the transmit power

Manual setting of the operating channel

Automatic setting of the operating channel

Automatic adjustment of the data rate

Coverage Hole Detection

AP load balancing based on traffic and STA quantity

Band selection

Radio frequency interference (RFI) detection and mitigation

Security

RG-WS6012-L

IPv4 security authentication

Web-based authentication

802.1X authentication

MAB authentication

SMS authentication

IPv6 security authentication

802.1X authentication

Web-based authentication

IEEE 802.11 security and encryption

Multi-SSID mode

SSID hiding

IEEE 802.11i-compliant PSK authentication

WPA and WPA2

WEP (WEP/WEP128)

TKIP

CCMP

ARP anti-spoofing

CPP

Supported

NFPP

Supported

WIDS

Supported

AP virtualization

Supported

Protocols

RG-WS6012-L

IPv4 protocols

Ping and traceroute

DHCP server, DHCP client, DHCP relay, and DHCP snooping

DNS client

NTP

Telnet

TFTP server and TFTP client

FTP server and FTP client

IPv6 protocols

DNSv6 client

DHCPv6 relay and DHCPv6 server

TFTPv6 client

FTPv6 server and FTPv6 client

IPv6 CAPWAP

ICMPv6

IPv6 ping

Manual tunnels, automatic tunnels, and ISATAP

Manually configured IP addresses and automatically created local addresses

IPv6 traceroute

Neighbor discovery

IPv4 routing

Static routing, RIP, and OSPF

IPv6 routing

Static routing

Management

RG-WS6012-L

Network management

SNMP v1/v2c/v3

RMON

Syslog

Remote probe

Network management platform

Eweb

Wi-Fi heat map

User access management

Console port login, Telnet login, SSH login, and FTP upload

Regulatory Compliance

RG-WS6012-L

Safety regulation

IEC 62368-1, EN 62368-1

EMC regulation

EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, and ETSI EN 300 386
